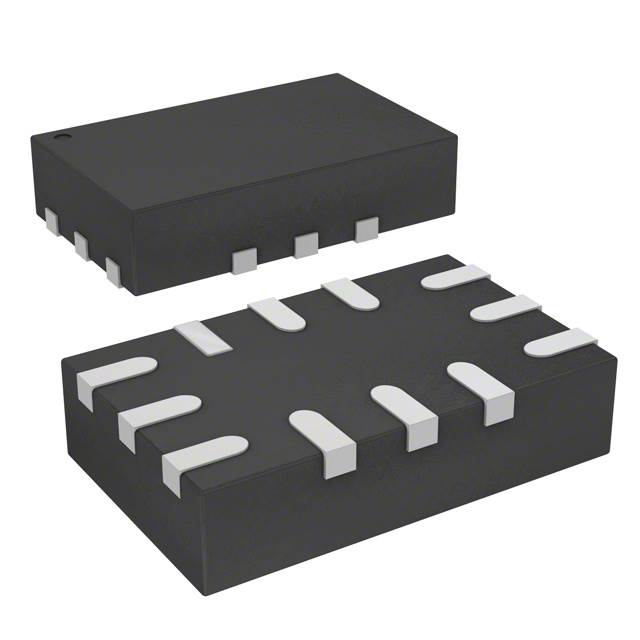

STG3856QTR
IC SWITCH SP3T X 2 1OHM 12QFN
| Part Description |
2 Circuit IC Switch 3:1 1Ohm 12-QFN (2.2x1.4) |
|---|---|
| Quantity | 1,656 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | STMicroelectronics |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 18 Weeks |
| Datasheet |
Specifications
| Part Package | 12-UFQFN |
|---|---|
| Device Package | 12-QFN (2.2×1.4) |
| Mounting Method | Surface Mount |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Switch Circuit: | SP3T |
| Multiplexer/Demultiplexer Circuit: | 3:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 1Ohm |
| Channel-to-Channel Matching (ΔRon): | 10mOhm |
| Voltage – Supply, Single (V+): | 1.65V ~ 4.3V |
| Switch Time (Ton, Toff) (Max): | 40ns, 20ns |
| -3db Bandwidth: | 100MHz |
| Charge Injection: | 55pC |
| Channel Capacitance (CS(off), CD(off)): | 5pF |
| Current – Leakage (IS(off)) (Max): | 20nA |
| Crosstalk: | -84dB @ 100kHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
