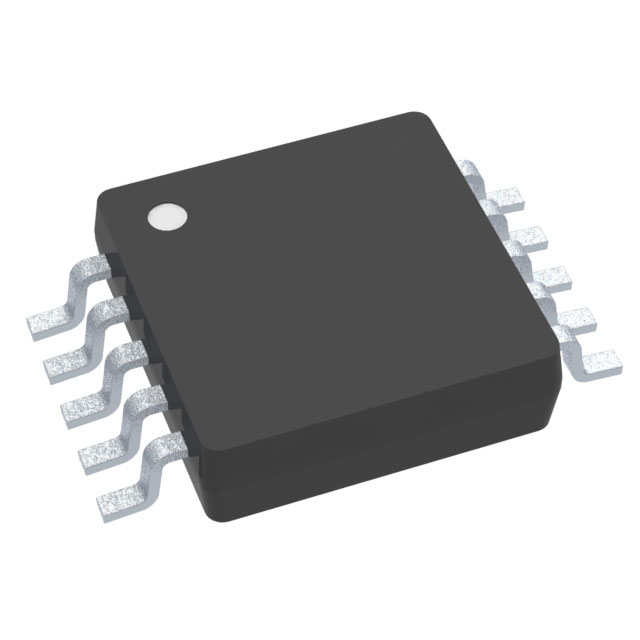

TMUX1072DGSR
IC SWITCH SPDT X 2 18OHM 10VSSOP
| Part Description |
2 Circuit IC Switch 2:1 18Ohm 10-VSSOP |
|---|---|
| Quantity | 337 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Texas Instruments |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 6 Weeks |
| Datasheet |
Specifications
| Part Package | 10-TFSOP, 10-MSOP (0.118″”, 3.00mm Width) |
|---|---|
| Device Package | 10-VSSOP |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Switch Circuit: | SPDT |
| Multiplexer/Demultiplexer Circuit: | 2:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 18Ohm |
| Channel-to-Channel Matching (ΔRon): | 70mOhm |
| Voltage – Supply, Single (V+): | 2.3V ~ 5.5V |
| Switch Time (Ton, Toff) (Max): | 250µs, 10µs |
| -3db Bandwidth: | 1.2GHz |
| Channel Capacitance (CS(off), CD(off)): | 4pF, 4pF |
| Current – Leakage (IS(off)) (Max): | 185µA |
| Crosstalk: | -90dB @ 100kHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
