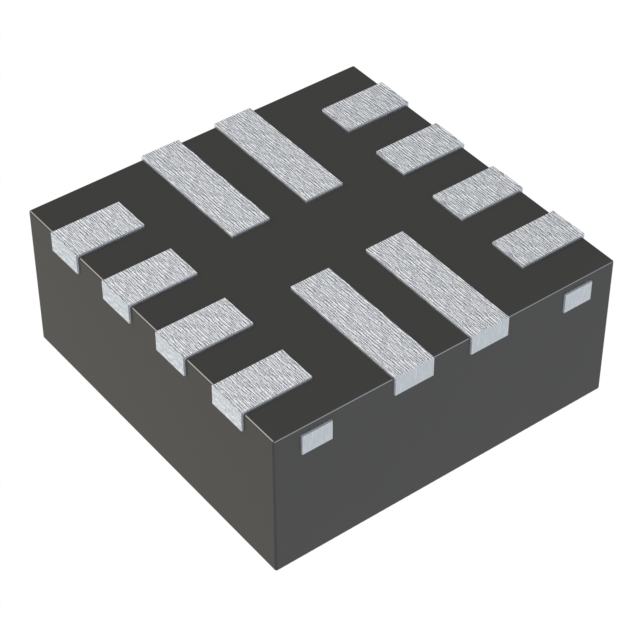

TMUX131RMGR
IC
| Part Description |
2 Circuit IC Switch 3:1 7Ohm 12-WQFN (1.8x1.8) |
|---|---|
| Quantity | 844 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Texas Instruments |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 12 Weeks |
| Datasheet |
Specifications
| Part Package | 12-WFQFN |
|---|---|
| Device Package | 12-WQFN (1.8×1.8) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Switch Circuit: | SP3T – Open/Closed |
| Multiplexer/Demultiplexer Circuit: | 3:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 7Ohm |
| Channel-to-Channel Matching (ΔRon): | 100mOhm |
| Voltage – Supply, Single (V+): | 2.5V ~ 4.3V |
| Switch Time (Ton, Toff) (Max): | 100µs, 100µs |
| -3db Bandwidth: | 6.5GHz |
| Channel Capacitance (CS(off), CD(off)): | 1pF |
| Current – Leakage (IS(off)) (Max): | 2µA |
| Crosstalk: | -38dB @ 240MHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
