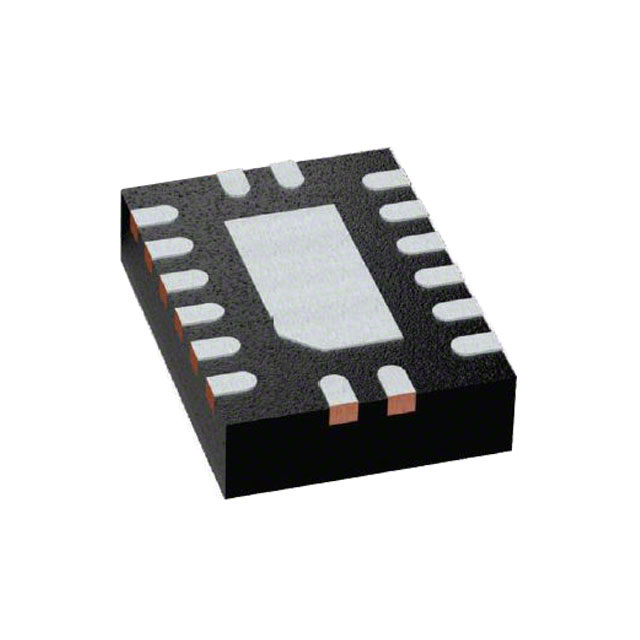

TMUX4052BQBRQ1
AUTOMOTIVE, 12-V, 4:1 TWO-CHANNE
| Part Description |
2 Circuit IC Switch 4:1 240Ohm 16-WQFN (3.5x2.5) |
|---|---|
| Quantity | 896 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Texas Instruments |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 12 Weeks |
| Datasheet |
Specifications
| Part Package | 16-WFQFN Exposed Pad |
|---|---|
| Device Package | 16-WQFN (3.5×2.5) |
| Mounting Method | Surface Mount |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Switch Circuit: | SP4T – Open |
| Multiplexer/Demultiplexer Circuit: | 4:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 240Ohm |
| Channel-to-Channel Matching (ΔRon): | 2Ohm |
| Voltage – Supply, Single (V+): | 5V ~ 24V |
| Switch Time (Ton, Toff) (Max): | 110ns, 85ns (Typ) |
| -3db Bandwidth: | 700MHz |
| Channel Capacitance (CS(off), CD(off)): | 3pF, 5pF |
| Crosstalk: | -90dB @ 1MHz |
| Grade: | Automotive |
| Qualification: | AEC-Q100 |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
