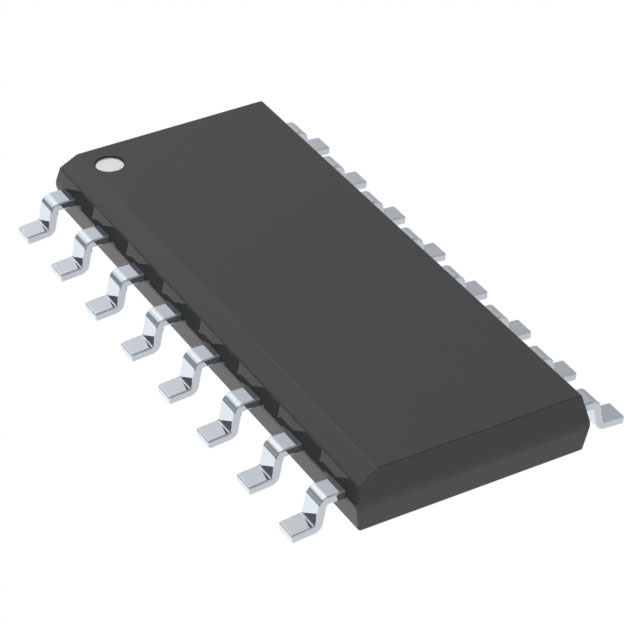

TMUX4053DYYR
+/-12-V, 2:1, 3-CHANNEL MULTIPLE
| Part Description |
3 Circuit IC Switch 2:1 240Ohm 16-SOT-23-THIN |
|---|---|
| Quantity | 371 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Texas Instruments |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 12 Weeks |
| Datasheet |
Specifications
| Part Package | SOT-23-16 Thin, SOT-23 Variant |
|---|---|
| Device Package | 16-SOT-23-THIN |
| Mounting Method | Surface Mount |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Switch Circuit: | SPDT – Open/Closed |
| Multiplexer/Demultiplexer Circuit: | 2:1 |
| Number of Circuits: | 3 |
| On-State Resistance (Max): | 240Ohm |
| Channel-to-Channel Matching (ΔRon): | 2Ohm |
| Voltage – Supply, Single (V+): | 5V ~ 24V |
| Voltage – Supply, Dual (V±): | ±12V |
| Switch Time (Ton, Toff) (Max): | 110ns, 85ns (Typ) |
| -3db Bandwidth: | 850MHz |
| Channel Capacitance (CS(off), CD(off)): | 3pF, 3pF |
| Current – Leakage (IS(off)) (Max): | 100nA |
| Crosstalk: | -90dB @ 1MHz |
Environmental
| REACH Compliance | REACH Unknown |
|---|---|
| RoHS Compliance | Unknown |
| Moisture Sensitivity Level | N/A |
| ECCN | N/A |
| HTS Code | N/A |
