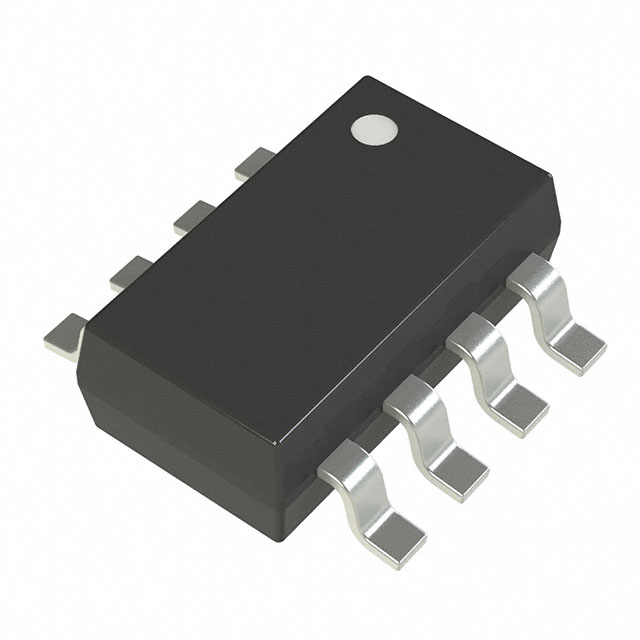

TMUX6119DCNR
IC SWITCH SPDTX1 165OHM SOT23-8
| Part Description |
1 Circuit IC Switch 2:1 165Ohm SOT-23-8 |
|---|---|
| Quantity | 592 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Texas Instruments |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 6 Weeks |
| Datasheet |
Specifications
| Part Package | SOT-23-8 |
|---|---|
| Device Package | SOT-23-8 |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Switch Circuit: | SPDT |
| Multiplexer/Demultiplexer Circuit: | 2:1 |
| Number of Circuits: | 1 |
| On-State Resistance (Max): | 165Ohm |
| Channel-to-Channel Matching (ΔRon): | 2.4mOhm |
| Voltage – Supply, Dual (V±): | ±5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max): | 86ns, 64ns |
| -3db Bandwidth: | 700MHz |
| Charge Injection: | -0.19pC |
| Channel Capacitance (CS(off), CD(off)): | 1.9pF, 4.3pF |
| Current – Leakage (IS(off)) (Max): | 20pA |
| Crosstalk: | -93dB @ 1MHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
