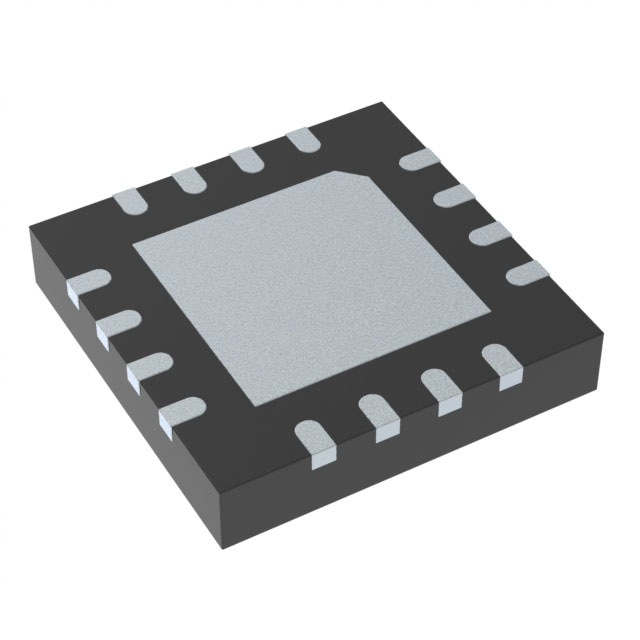

TMUX6213RUMR
IC SW SPST-NO/NCX4 3.1OHM 16WQFN
| Part Description |
4 Circuit IC Switch 1:1 3.1Ohm 16-WQFN (4x4) |
|---|---|
| Quantity | 1,033 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Texas Instruments |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 6 Weeks |
| Datasheet |
Specifications
| Part Package | 16-WQFN Exposed Pad |
|---|---|
| Device Package | 16-WQFN (4×4) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Switch Circuit: | SPST – NO/NC |
| Multiplexer/Demultiplexer Circuit: | 1:1 |
| Number of Circuits: | 4 |
| On-State Resistance (Max): | 3.1Ohm |
| Channel-to-Channel Matching (ΔRon): | 100mOhm |
| Voltage – Supply, Single (V+): | 4.5V ~ 36V |
| Voltage – Supply, Dual (V±): | ±4.5V ~ 18V |
| Switch Time (Ton, Toff) (Max): | 180ns, 200ns |
| -3db Bandwidth: | 50MHz |
| Charge Injection: | 78pC |
| Channel Capacitance (CS(off), CD(off)): | 28pF, 45pF |
| Current – Leakage (IS(off)) (Max): | 1nA |
| Crosstalk: | -93dB @ 1MHz |
Environmental
| REACH Compliance | REACH Unknown |
|---|---|
| RoHS Compliance | Not applicable |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
