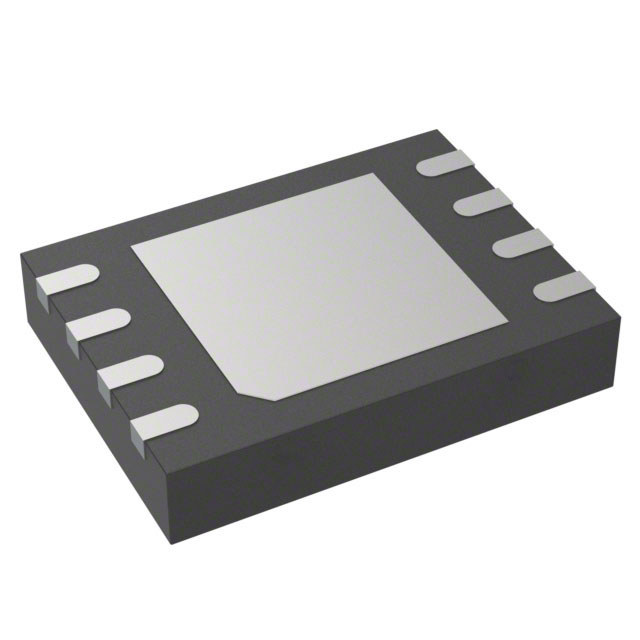

TMUX7201RQXR
IC
| Part Description |
1 Circuit IC Switch 1:1 1.6Ohm 8-WSON (3x2) |
|---|---|
| Quantity | 1,963 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Texas Instruments |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 12 Weeks |
| Datasheet |
Specifications
| Part Package | 8-WFDFN Exposed Pad |
|---|---|
| Device Package | 8-WSON (3×2) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Switch Circuit: | SPST – NO |
| Multiplexer/Demultiplexer Circuit: | 1:1 |
| Number of Circuits: | 1 |
| On-State Resistance (Max): | 1.6Ohm |
| Voltage – Supply, Single (V+): | 4.5V ~ 44V |
| Switch Time (Ton, Toff) (Max): | 140ns, 150ns |
| -3db Bandwidth: | 22MHz |
| Charge Injection: | -20pC |
| Channel Capacitance (CS(off), CD(off)): | 45pF, 66pF |
| Current – Leakage (IS(off)) (Max): | 1nA |
Environmental
| REACH Compliance | REACH Unknown |
|---|---|
| RoHS Compliance | Unknown |
| Moisture Sensitivity Level | N/A |
| ECCN | N/A |
| HTS Code | N/A |
