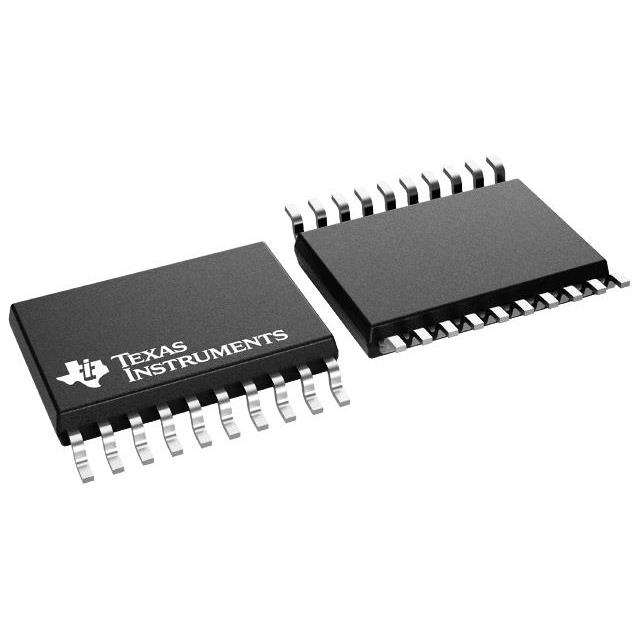

TMUX7348FPWR
60V FAULT-PROTECTED, 8:1 MULTIPL
| Part Description |
1 Circuit IC Switch 8:1 250Ohm 20-TSSOP |
|---|---|
| Quantity | 85 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Texas Instruments |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 12 Weeks |
| Datasheet |
Specifications
| Part Package | 20-TSSOP (0.173″”, 4.40mm Width) |
|---|---|
| Device Package | 20-TSSOP |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Switch Circuit: | SP8T – Open |
| Multiplexer/Demultiplexer Circuit: | 8:1 |
| Number of Circuits: | 1 |
| On-State Resistance (Max): | 250Ohm |
| Channel-to-Channel Matching (ΔRon): | 2.5Ohm |
| Voltage – Supply, Single (V+): | 8V ~ 44V |
| Voltage – Supply, Dual (V±): | ±5V ~ 22V |
| Switch Time (Ton, Toff) (Max): | 300ns, 400ns |
| -3db Bandwidth: | 150MHz |
| Charge Injection: | -17pC |
| Channel Capacitance (CS(off), CD(off)): | 3.5pF, 28pF |
| Current – Leakage (IS(off)) (Max): | 1nA |
| Crosstalk: | -95dB @ 1MHz |
Environmental
| REACH Compliance | REACH Unknown |
|---|---|
| RoHS Compliance | Unknown |
| Moisture Sensitivity Level | N/A |
| ECCN | N/A |
| HTS Code | N/A |
