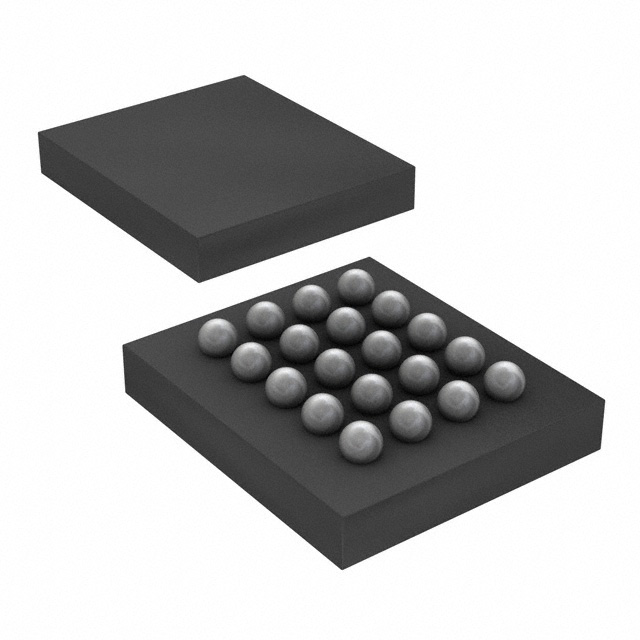

TS2DDR2811ZXYR
IC SWITCH SPST-NO X 8 6OHM 20BGA
| Part Description |
8 Circuit IC Switch 1:1 6Ohm 20-BGA Microstar Junior (2.5x3.0) |
|---|---|
| Quantity | 831 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Texas Instruments |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
Specifications
| Part Package | 20-UFBGA |
|---|---|
| Device Package | 20-BGA Microstar Junior (2.5×3.0) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Switch Circuit: | SPST – NO |
| Multiplexer/Demultiplexer Circuit: | 1:1 |
| Number of Circuits: | 8 |
| On-State Resistance (Max): | 6Ohm |
| Channel-to-Channel Matching (ΔRon): | 400mOhm |
| Voltage – Supply, Single (V+): | 3V ~ 3.6V |
| -3db Bandwidth: | 1.1GHz |
| Channel Capacitance (CS(off), CD(off)): | 2.5pF |
| Crosstalk: | -37dB @ 200MHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
