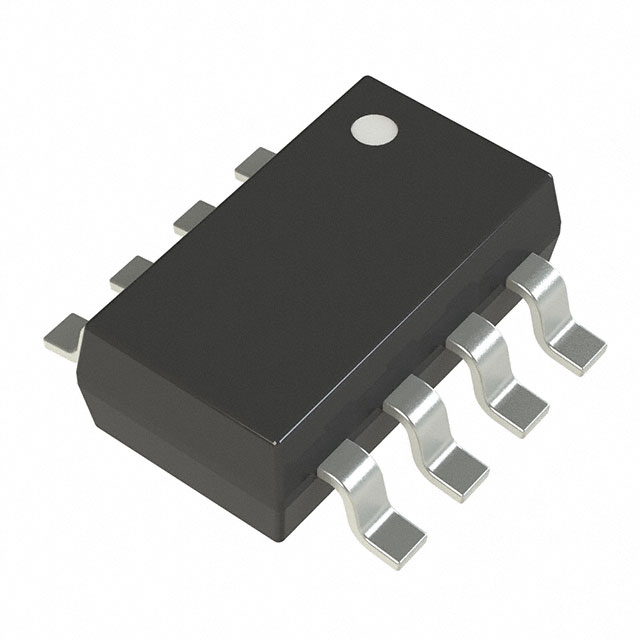

TS3A4742DCNR
IC SW SPST-NCX2 900MOHM SOT23-8
| Part Description |
2 Circuit IC Switch 1:1 900mOhm SOT-23-8 |
|---|---|
| Quantity | 1,180 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Texas Instruments |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 6 Weeks |
| Datasheet |
Specifications
| Part Package | SOT-23-8 |
|---|---|
| Device Package | SOT-23-8 |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Switch Circuit: | SPST – NC |
| Multiplexer/Demultiplexer Circuit: | 1:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 900mOhm |
| Channel-to-Channel Matching (ΔRon): | 30mOhm |
| Voltage – Supply, Single (V+): | 1.6V ~ 3.6V |
| Switch Time (Ton, Toff) (Max): | 14ns, 9ns |
| -3db Bandwidth: | 125MHz |
| Charge Injection: | 3pC |
| Channel Capacitance (CS(off), CD(off)): | 23pF, 20pF |
| Current – Leakage (IS(off)) (Max): | 2nA |
| Crosstalk: | -95dB @ 1MHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
