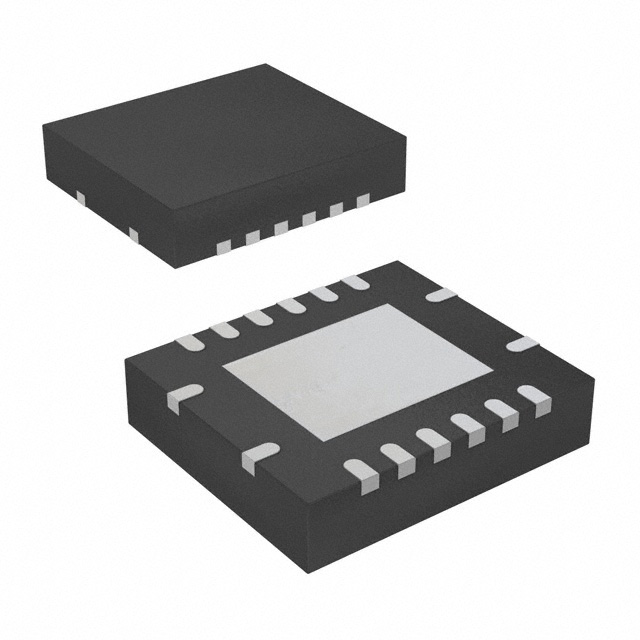

TS3A5017RGYRG4
IC SWITCH SP4T X 2 12OHM 16VQFN
| Part Description |
2 Circuit IC Switch 4:1 12Ohm 16-VQFN (4x3.5) |
|---|---|
| Quantity | 1,466 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Texas Instruments |
| Manufacturing Status | Discontinued at Digi-Key |
| Manufacturer Standard Lead Time | 6 Weeks |
| Datasheet |
Specifications
| Part Package | 16-VFQFN Exposed Pad |
|---|---|
| Device Package | 16-VQFN (4×3.5) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Switch Circuit: | SP4T |
| Multiplexer/Demultiplexer Circuit: | 4:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 12Ohm |
| Channel-to-Channel Matching (ΔRon): | 1Ohm |
| Voltage – Supply, Single (V+): | 2.3V ~ 3.6V |
| Switch Time (Ton, Toff) (Max): | 9.5ns, 3.5ns |
| -3db Bandwidth: | 165MHz |
| Charge Injection: | 5pC |
| Channel Capacitance (CS(off), CD(off)): | 4.5pF, 19pF |
| Current – Leakage (IS(off)) (Max): | 100nA |
| Crosstalk: | -49dB @ 1MHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 2 (1 Year) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
