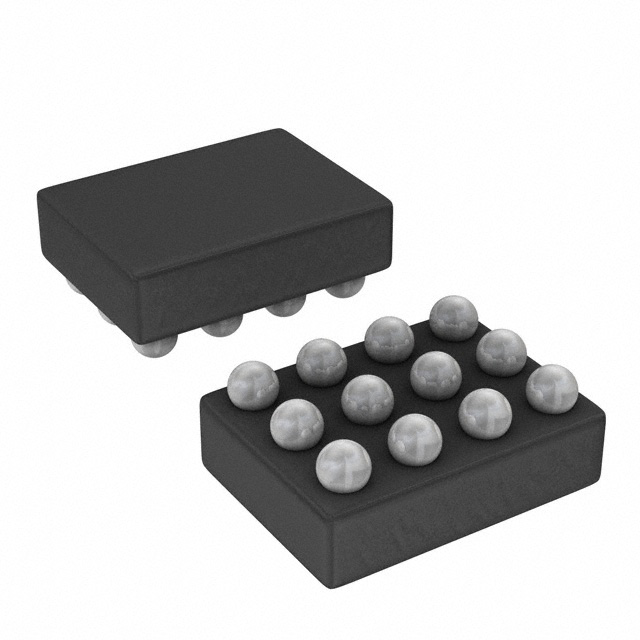

TS5A22366YFCR
IC SWITCH SPDT X 2 1OHM 12DSBGA
| Part Description |
2 Circuit IC Switch 2:1 1Ohm 12-DSBGA (1.57x1.17) |
|---|---|
| Quantity | 1,073 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Texas Instruments |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 6 Weeks |
| Datasheet |
Specifications
| Part Package | 12-UFBGA, DSBGA |
|---|---|
| Device Package | 12-DSBGA (1.57×1.17) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Switch Circuit: | SPDT |
| Multiplexer/Demultiplexer Circuit: | 2:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 1Ohm |
| Channel-to-Channel Matching (ΔRon): | 100mOhm |
| Voltage – Supply, Single (V+): | 2.25V ~ 5.5V |
| Switch Time (Ton, Toff) (Max): | 374ns, 325ns |
| -3db Bandwidth: | 32MHz |
| Charge Injection: | 168pC |
| Channel Capacitance (CS(off), CD(off)): | 48pF |
| Current – Leakage (IS(off)) (Max): | 50nA |
| Crosstalk: | -70dB @ 100kHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
