A40MX02-VQ80M

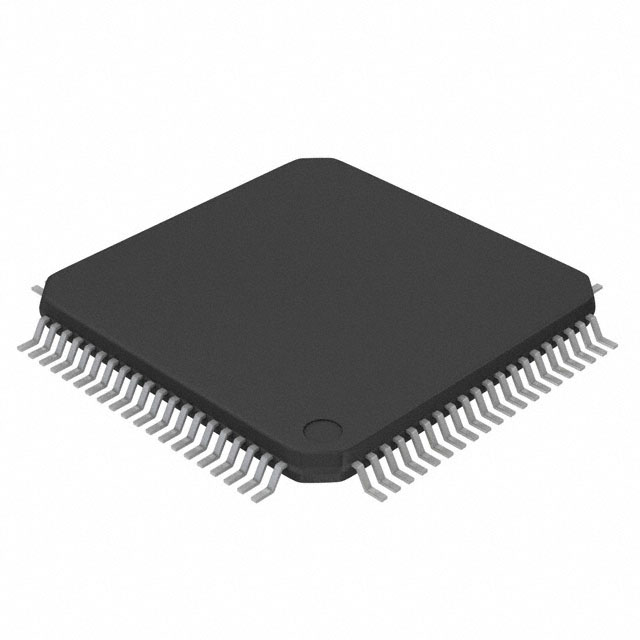

The A40MX02-VQ80M is a field-programmable gate array (FPGA) supplied in an 80‑TQFP surface-mount package. It delivers 295 logic elements (about 3000 gates) and 57 I/O pins for implementing custom logic and board-level interfacing.

Designed to operate from 3 V to 5.5 V and rated for military temperature extremes (–55 °C to 125 °C), this RoHS‑compliant device targets applications that require moderate logic density with wide supply and thermal tolerance in a compact 80‑VQFP (14×14) footprint.

Key Features

• Logic Density 295 logic elements providing 3000 gates for implementing custom combinational and sequential logic functions.
• I/O Count 57 general-purpose I/O pins to connect to sensors, peripherals, and external logic.
• Embedded Memory Total on-chip RAM: 0 bits (no embedded on-chip RAM).
• Supply Voltage Operates across a wide supply range from 3 V to 5.5 V to suit varied system voltage environments.
• Package & Mounting 80‑TQFP package; supplier device package listed as 80‑VQFP (14×14); surface-mount mounting type for standard PCB assembly.
• Temperature & Grade Military grade with an operating temperature range of –55 °C to 125 °C for high-reliability and temperature‑extreme applications.
• Environmental Compliance RoHS compliant.

Typical Applications

• Military and aerospace systems — Military grade temperature rating and robust supply range support deployment in temperature‑extreme environments.
• Embedded control and custom logic — Moderate logic capacity and 57 I/O pins enable glue logic, protocol bridging, and control functions in compact systems.
• Ruggedized electronic modules — Surface-mount 80‑VQFP package and wide operating ranges suit applications requiring reliable board-level integration under challenging conditions.

Unique Advantages

• Military‑grade thermal tolerance — Rated from –55 °C to 125 °C for operation in harsh temperature environments.
• Wide supply range — 3 V to 5.5 V operation accommodates varied system power rails.
• Compact surface‑mount footprint — 80‑TQFP / 80‑VQFP (14×14) simplifies PCB layout for space‑constrained designs.
• Balanced logic capacity — 295 logic elements (3000 gates) provide adequate resources for control, interfacing, and glue‑logic tasks without excess complexity.
• RoHS compliant — Meets environmental compliance requirements for modern electronic assemblies.

Why Choose A40MX02-VQ80M?

The A40MX02-VQ80M delivers a compact, military‑grade FPGA solution for applications that need moderate logic resources, multiple I/O, and robust operating envelopes. Its combination of 295 logic elements, 57 I/O, and a wide 3 V–5.5 V supply range makes it a practical choice for designers prioritizing reliability and predictable thermal performance.

This device is well suited for engineers developing rugged embedded modules, military/aerospace electronics, and other systems where temperature tolerance and a compact, surface‑mount package are important design drivers.

Request a quote or contact our sales team to submit a purchasing inquiry for the A40MX02-VQ80M.
