A40MX02-VQG80M

The A40MX02-VQG80M is a field programmable gate array (FPGA) from Microchip Technology, offered in an 80-pin TQFP surface-mount package. It provides a compact, military-grade programmable logic solution with 295 logic elements and 57 general-purpose I/O pins for board-level designs requiring wide operating temperature and flexible supply options.

This device is specified for operation from -55°C to 125°C and accepts supply voltages from 3 V to 5.5 V, making it suitable for designs that require extended temperature tolerance and broad power-supply compatibility.

Key Features

• Core / Logic — 295 logic elements (LEs) and an estimated 3,000 gates provide the combinational and simple-sequential logic capacity for control, glue-logic, and low-to-moderate complexity programmable functions.
• I/O — 57 user I/O pins available for interfacing with external devices, sensors, and peripherals on a single-chip programmable platform.
• Memory — Total on-chip RAM: 0 bits.

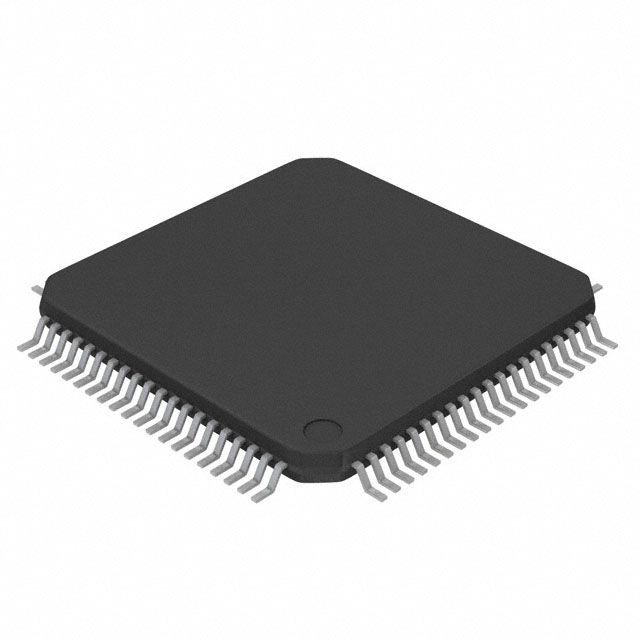

• Package & Mounting — 80-pin TQFP package (supplier device package: 80-VQFP 14×14) in a surface-mount form factor for compact PCB integration.
• Power — Accepts a wide supply range from 3 V to 5.5 V, enabling use with common logic rails and mixed-voltage boards.
• Environmental & Grade — Military grade device specification and RoHS-compliant construction; operating temperature range from -55°C to 125°C supports deployment in temperature-extreme environments.

Unique Advantages

• Military-grade temperature tolerance: Rated from -55°C to 125°C, enabling reliable operation in harsh thermal environments.
• Flexible supply compatibility: 3 V to 5.5 V supply range simplifies integration with a variety of system power rails.
• Compact, surface-mount TQFP package: 80-pin 14×14 VQFP footprint allows for small-board implementations without sacrificing I/O count.
• Balanced logic density: 295 logic elements and approximately 3,000 gates provide a straightforward programmable fabric for control and interface functions while keeping PCB and BOM complexity low.
• RoHS compliant: Meets environmental regulations for lead-free assembly and responsible manufacturing.

Why Choose A40MX02-VQG80M?

The A40MX02-VQG80M combines a compact 80-TQFP surface-mount package with a military-grade temperature rating and a flexible supply voltage range, delivering a robust, easy-to-integrate FPGA option for board designs that require dependable operation across extreme temperatures. Its 57 I/O pins and 295 logic elements offer a practical balance of programmability and simplicity for control, interface, and glue-logic tasks.

This device is well suited to engineers and procurement teams seeking a RoHS-compliant, Mil-grade FPGA in a standard TQFP footprint, providing predictable integration into space-constrained PCBs while leveraging Microchip Technology’s FPGA platform.

Request a quote or submit a pricing inquiry to discuss availability, lead times, and volume pricing for the A40MX02-VQG80M.
