A40MX02-VQG80I

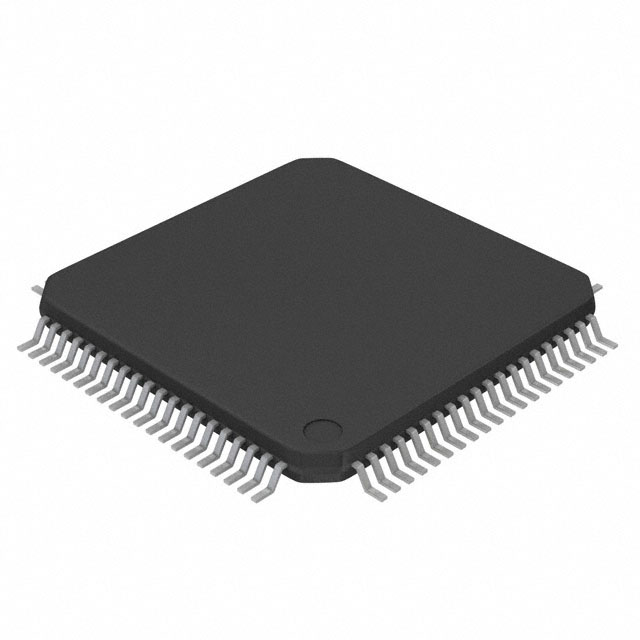

The A40MX02-VQG80I is a Microchip MX-series field programmable gate array supplied in an 80-pin TQFP package. It integrates roughly 295 logic elements and 3,000 gates with 57 user I/O pins, targeting compact, reprogrammable digital designs that require industrial temperature operation.

This surface-mount FPGA supports a wide supply range from 3 V to 5.5 V and is specified for operation from −40°C to 85°C. It is RoHS compliant and packaged in an 80-TQFP / 80-VQFP (14×14) footprint for board-level integration.

Key Features

• Core Logic  Approximately 295 logic elements and 3,000 gates provide configurable fabric for glue logic, state machines, and simple custom peripherals.
• I/O  57 user I/O pins suitable for interfacing with sensors, control signals, and peripheral devices within the given package constraints.
• Memory  No on-chip RAM (0 total RAM bits), allowing predictable resource planning when external memory is required.
• Power  Wide supply range from 3 V to 5.5 V to support mixed-voltage system architectures and flexible power rail integration.
• Package & Mounting  80-TQFP package case; supplier device package listed as 80-VQFP (14×14). Surface-mount mounting type for standard PCB assembly.
• Temperature & Grade  Industrial grade operation from −40°C to 85°C for deployment in temperature-demanding environments.
• Compliance  RoHS compliant for regulatory alignment with lead-free manufacturing processes.

Unique Advantages

• Compact, reprogrammable logic: 295 logic elements give designers a small FPGA fabric to implement custom logic without large device overhead.
• Flexible I/O count: 57 user I/O pins allow direct interfacing to multiple peripherals and sensors in compact systems.
• Wide supply voltage range: 3 V to 5.5 V compatibility simplifies integration into systems with differing rail voltages.
• Industrial temperature rating: Specified operation from −40°C to 85°C supports deployment in demanding ambient conditions.
• Standard surface-mount package: 80-TQFP / 80-VQFP (14×14) packaging eases placement in designs constrained by board space and assembly processes.
• RoHS compliance: Meets lead-free manufacturing requirements for modern production flows.

Why Choose A40MX02-VQG80I?

The A40MX02-VQG80I positions itself as a compact, industrial-grade FPGA option for designers who need reprogrammable logic with a moderate number of I/Os and a flexible supply voltage range. Its combination of roughly 295 logic elements, 57 I/Os, and an 80-pin surface-mount package supports board-level designs where space and reliable operation across −40°C to 85°C are important.

Choose this FPGA for projects that require small-scale programmable logic, straightforward integration into mixed-voltage systems, and RoHS-compliant manufacturing. Its clear resource profile and standard packaging make it suitable for engineering teams planning deterministic resource allocation and stable long-term deployments.

Request a quote or submit an inquiry for the A40MX02-VQG80I to get pricing and availability details tailored to your project requirements.
