A40MX04-3PLG68I

The A40MX04-3PLG68I is an MX Field Programmable Gate Array (FPGA) in a 68-LCC (J‑Lead) surface-mount package. It provides 547 logic elements (approximately 6,000 gates) and 57 user I/O pins, delivering a compact, logic-focused programmable device for industrial designs.

Rated for industrial operation from -40 °C to 85 °C and supporting a wide supply range of 3 V to 5.5 V, this FPGA is intended for applications that require moderate-density programmable logic with flexible I/O and industry-oriented environmental tolerance.

Key Features

• Logic Capacity  547 logic elements with approximately 6,000 gates for implementing combinational and sequential logic functions.
• I/O Resources  57 general-purpose I/O pins to interface with peripherals, sensors, and external logic.
• Logic-Centric Architecture  Designed as a logic-focused FPGA; Total RAM bits: 0, providing deterministic logic resources for glue logic and control functions.
• Power Supply  Wide operating voltage from 3 V to 5.5 V to accommodate different system voltage domains.

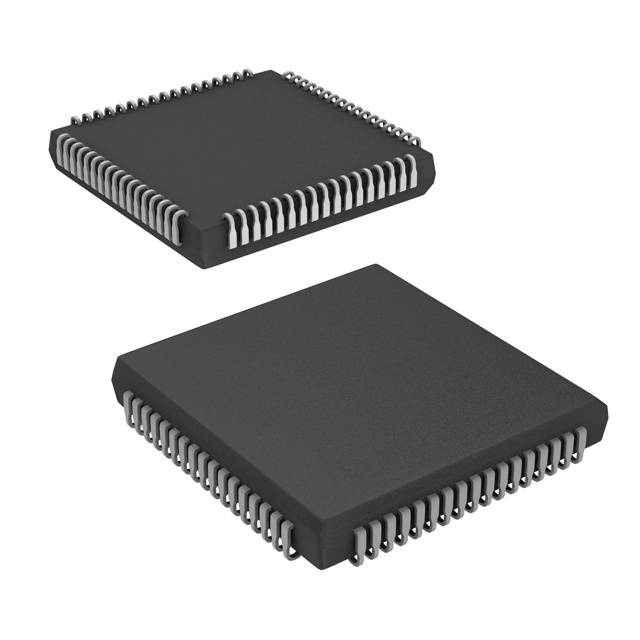

• Package & Mounting  Surface-mount 68-LCC (J-Lead) package; supplier device package listed as 68-PLCC (24.23x24.23 mm) for PCB footprint planning.
• Temperature & Grade  Industrial grade with an operating temperature range of -40 °C to 85 °C for deployment in demanding environments.
• Environmental Compliance  RoHS compliant for regulated manufacturing and product lifecycles.

Typical Applications

• Industrial control  Programmable logic for control systems and factory automation where industrial temperature range and reliable I/O are required.
• Glue logic and protocol bridging  Consolidation of discrete logic functions and simple protocol translation using available I/O and logic elements.
• Embedded digital processing  Low-to-moderate density digital designs that need deterministic, reconfigurable logic resources.

Unique Advantages

• Compact surface-mount package: The 68-LCC (J‑Lead) form factor and 24.23×24.23 mm supplier package dimension support space-efficient PCB layouts.
• Industrial temperature support: Rated from -40 °C to 85 °C for dependable operation in industrial environments.
• Flexible power compatibility: 3 V to 5.5 V supply range enables use across varied system voltage domains without additional level-shifting hardware.
• Substantial I/O count: 57 I/O pins provide broad interfacing capability for sensors, buses, and control lines.
• Deterministic logic resources: 547 logic elements (≈6,000 gates) provide predictable capacity for glue logic, state machines, and control implementations.
• RoHS compliant: Meets environmental regulatory requirements for modern manufacturing.

Why Choose A40MX04-3PLG68I?

The A40MX04-3PLG68I positions itself as a compact, industrial-grade FPGA option for designs that require moderate-density programmable logic with flexible I/O and broad voltage compatibility. Its combination of 547 logic elements, 57 I/O pins, surface-mount 68-LCC packaging, and industrial temperature rating makes it well suited to control, interfacing, and glue-logic roles in industrial systems.

For design teams and procurement professionals seeking a RoHS-compliant, logic-focused FPGA with predictable resource capacity and I/O flexibility, the A40MX04-3PLG68I offers a straightforward, reliable option that aligns with industrial application needs.

Request a quote or submit an inquiry to receive pricing and availability for the A40MX04-3PLG68I.
