A40MX04-3PLG84

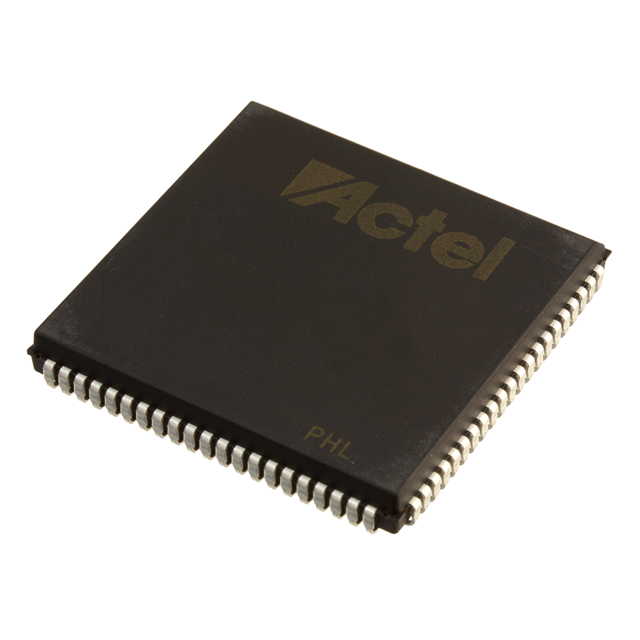

The A40MX04-3PLG84 is an MX series field programmable gate array (FPGA) in an 84‑lead LCC (J‑Lead) package. It provides a moderate logic resource set with 547 logic elements (CLBs) and up to 69 I/O pins, designed for commercial‑grade applications that require flexible programmable logic and a wide input supply range.

With a supply voltage range from 3 V to 5.25 V and surface‑mount PLCC packaging, this device is suited to designs that need compact programmable logic, defined I/O capacity, and RoHS compliance within a 0 °C to 70 °C operating window.

Key Features

• Core Logic — Approximately 547 logic elements (CLBs) supporting up to 6,000 gates for implementing custom digital functions and glue logic.
• I/O Count — 69 user I/O pins to support multiple signals, interfaces, and peripheral connections in a single device.
• Memory — Total on‑chip RAM bits: 0 (logic‑focused architecture without embedded SRAM).
• Power — Wide supply voltage range from 3 V to 5.25 V to accommodate common digital power rails.
• Package & Mounting — 84‑lead LCC (J‑Lead) surface‑mount package (supplier package: 84‑PLCC 29.31×29.31), suitable for compact board layouts.
• Temperature & Grade — Commercial grade operation from 0 °C to 70 °C for standard commercial applications.
• Environmental Compliance — RoHS compliant.

Typical Applications

• Board-Level Glue Logic — Use the A40MX04-3PLG84 to implement custom combinational and sequential logic that consolidates multiple discrete components into a single programmable device.
• I/O Expansion and Signal Conditioning — Leverage 69 I/O pins to manage parallel signal routing, buffering, or simple protocol translation within commercial designs.
• Prototyping and Low-to-Medium Complexity Designs — Deliver moderate digital functionality using ~547 logic elements and 6,000 gates for rapid development and iteration in non‑industrial applications.

Unique Advantages

• Moderate Logic Capacity: Approximately 547 logic elements and 6,000 gates provide a balanced option for designs that need more than small CPLDs but do not require large FPGA resources.
• Generous I/O Count: 69 I/O pins enable consolidation of multiple signals and peripheral interfaces into a single device, reducing board complexity.
• Flexible Power Requirements: Operation from 3 V to 5.25 V allows compatibility with common digital power domains without specialized regulators.
• Compact Surface‑Mount PLCC Package: The 84‑lead LCC (J‑Lead) package with the supplier 84‑PLCC footprint (29.31×29.31) supports space‑constrained layouts while maintaining robust solderable leads.
• Commercial Temperature Range: Rated 0 °C to 70 °C for standard commercial deployments.
• RoHS Compliant: Meets environmental requirements for lead‑free manufacturing processes.

Why Choose A40MX04-3PLG84?

The A40MX04-3PLG84 positions itself as a practical, logic‑centric FPGA for commercial applications that require a moderate number of logic elements and a substantial I/O count in a compact PLCC package. Its voltage flexibility and RoHS compliance make it straightforward to integrate into common commercial product designs.

This device is a good fit for engineers and procurement teams targeting board‑level consolidation, prototyping, or moderate‑complexity digital designs where predictable operating conditions (0 °C to 70 °C) and a defined set of resources—approximately 547 logic elements and 69 I/O—meet project requirements.

Request a quote or submit an RFQ to obtain pricing and availability for the A40MX04-3PLG84. Our team can provide the information you need to move your design forward.
