A42MX36-1CQ208B

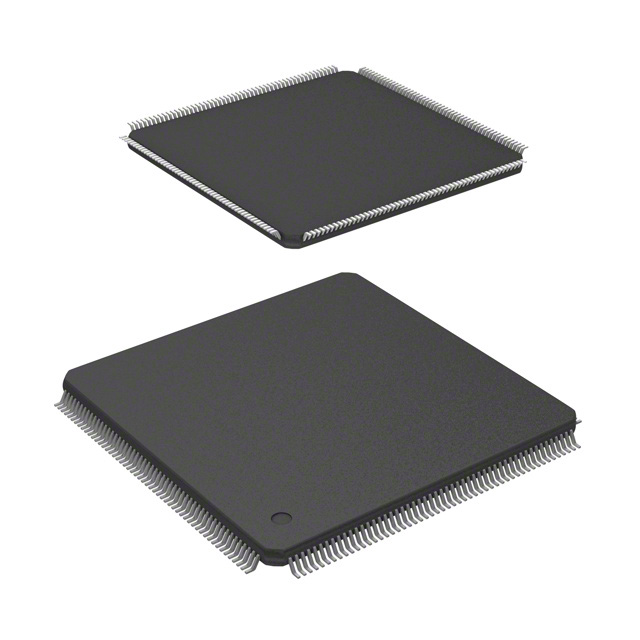

The A42MX36-1CQ208B is a MX family field programmable gate array (FPGA) IC designed for programmable digital logic implementations. It provides a balanced combination of logic resources, I/O density and on-chip memory in a surface-mount 208‑BFCQFP package with tie bar.

With 1,184 logic elements, 176 user I/O, approximately 2,560 bits of embedded RAM and a supply range of 3 V to 5.5 V, this military-grade device supports designs that require extended temperature operation from -55 °C to 125 °C and RoHS-compliant manufacturing.

Key Features

• Core Logic  1,184 logic element cells and approximately 54,000 gates provide the programmable fabric for implementing custom digital functions.
• Memory  Total on-chip RAM of 2,560 bits (approximately 2.56 kbits) for small data buffers, state storage and LUT-based implementations.
• I/O  176 user I/O pins support a wide range of external interfacing and parallel connectivity requirements.
• Power  Flexible voltage supply range from 3 V to 5.5 V to accommodate different system power domains.
• Package & Mounting  208‑BFCQFP package with tie bar in a surface-mount format; supplier device package listed as 208‑CQFP (75×75).
• Grade & Temperature Range  Military-grade device rated for operation from -55 °C to 125 °C for use in extreme-temperature environments.
• Environmental Compliance  RoHS-compliant to support lead‑free manufacturing processes.

Unique Advantages

• Military-grade temperature capability: Rated for -55 °C to 125 °C to meet stringent thermal requirements in harsh environments.
• Balanced logic and I/O: 1,184 logic elements combined with 176 I/O pins enable mid-density designs with significant external connectivity.
• Wide supply voltage flexibility: 3 V to 5.5 V operation allows integration into a variety of system power architectures.
• Compact surface-mount package: 208‑BFCQFP with tie bar and a 208‑CQFP (75×75) supplier package footprint for PCB mounting and assembly.
• Integrated on-chip RAM: Approximately 2.56 kbits of embedded memory for local buffering and stateful logic.
• RoHS compliant: Supports environmentally responsible manufacturing and assembly processes.

Why Choose A42MX36-1CQ208B?

The A42MX36-1CQ208B positions itself as a military-grade MX family FPGA offering a compact package, moderate logic density and abundant I/O for mid-range programmable logic applications that require extended temperature operation. Its combination of 1,184 logic elements, 176 I/O and on-chip RAM delivers a versatile building block for custom digital designs where reliability and environmental tolerance are priorities.

This device is suitable for engineers and procurement teams specifying FPGAs that must operate across wide temperature ranges and within flexible voltage domains while maintaining RoHS compliance and standard surface-mount packaging.

Request a quote or submit an inquiry to receive pricing, availability and lead-time details for the A42MX36-1CQ208B.
