AGLN060V5-ZCSG81

The AGLN060V5-ZCSG81 is a Microchip IGLOO nano family flash-based FPGA in an 81-pin WFBGA/CSBGA package. It delivers approximately 60,000 system gates with 1,536 logic elements and embedded SRAM, packaged for compact, low-power designs.

Targeted for commercial applications, this device combines nonvolatile flash configuration, low-power operation, and flexible I/O for use in battery-powered products, edge processing, and custom interface or glue-logic roles.

Key Features

• Logic Capacity — Approximately 60,000 system gates and 1,536 logic elements provide fabric density for medium-complexity designs.
• Embedded Memory — Total on-chip RAM of 18,432 bits (approximately 18 kbits) organized as SRAM/FIFO blocks for data buffering and state storage.
• I/O — 60 user I/Os for peripheral interfacing and mixed-signal front-end connectivity.
• Nonvolatile Flash Configuration — Flash-based FPGA architecture retains programmed design when powered off and supports reprogramming in-system.
• Low-Power Operation — Series features include ultra-low power modes and Flash*Freeze technology (as implemented in IGLOO nano devices) to minimize standby consumption.
• Programming & Security — In-system programming and on-chip security features are available in the IGLOO nano family, including AES-based secure ISP and FlashLock for protecting FPGA contents.
• Clocking — The IGLOO nano family provides clock conditioning circuits (CCC) for flexible clock management. Note: AGLN060 devices in the CS81 package do not support integrated PLLs.
• Power and Thermal — Specified supply range of 1.425 V to 1.575 V and commercial operating temperature from −20°C to +85°C.

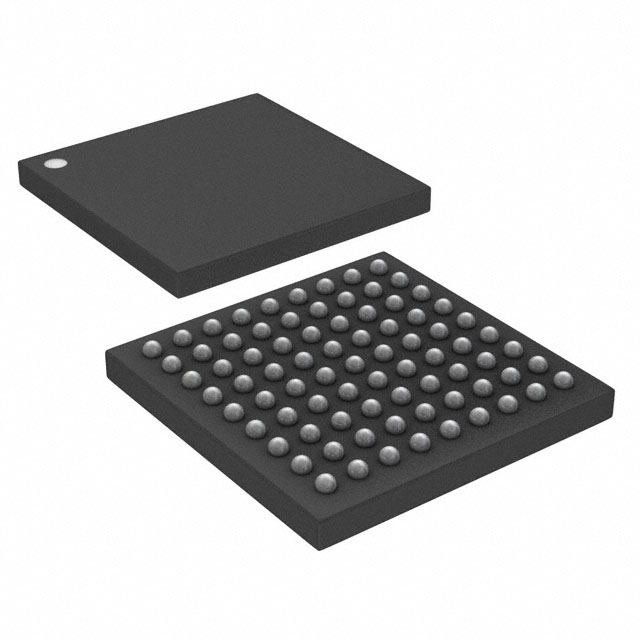

• Package & Mounting — Surface-mount 81-WFBGA (CSBGA) / supplier device package 81-CSP (5×5) for space-efficient board designs.
• Compliance — RoHS-compliant.

Typical Applications

• Battery-powered and portable devices — Low-power flash architecture and Flash*Freeze capability help extend battery life while preserving programmed configuration.
• Edge sensor processing — On-chip SRAM and 60 I/Os enable local data buffering, preprocessing, and interface to sensors and ADCs.
• Custom peripheral bridging — Use the FPGA fabric to implement protocol translation, timing adaptation, or glue logic between subsystems.
• Secure boot and configuration — On-chip AES ISP and FlashLock support secure in-system programming and protection of bitstreams.

Unique Advantages

• Nonvolatile, reprogrammable configuration: Flash-based architecture retains designs without external configuration memory and supports in-system updates.
• Compact package footprint: 81-pin WFBGA/CSBGA and 81-CSP (5×5) packaging enables integration into space-constrained PCBs.
• Balanced logic and memory: 1,536 logic elements paired with ~18 kbits of SRAM provide a practical balance for glue logic, protocol handling, and small state machines.
• Secure programming options: Series-level AES-based ISP and FlashLock help protect intellectual property and enable secure configuration workflows.
• Commercial temperature and low-voltage operation: Specified for −20°C to +85°C operation with a narrow core supply window (1.425–1.575 V) suited to low-power system designs.
• RoHS compliance: Conforms to common environmental standards for commercial electronic assemblies.

Why Choose AGLN060V5-ZCSG81?

The AGLN060V5-ZCSG81 is well suited for designers needing a compact, flash-configured FPGA with moderate logic density, built-in memory, and secure in-system programming for commercial products. Its low-power architecture and nonvolatile configuration make it a practical choice for portable and edge applications where retention of bitstream and reduced standby power matter.

Choose this device when you require a space-efficient FPGA that offers reprogrammability, on-chip SRAM for buffering, and a secure programming path—backed by the IGLOO nano family feature set and RoHS compliance for reliable commercial deployments.

Request a quote or submit an inquiry to receive pricing and availability for the AGLN060V5-ZCSG81.
