AGLN250V2-ZCSG81

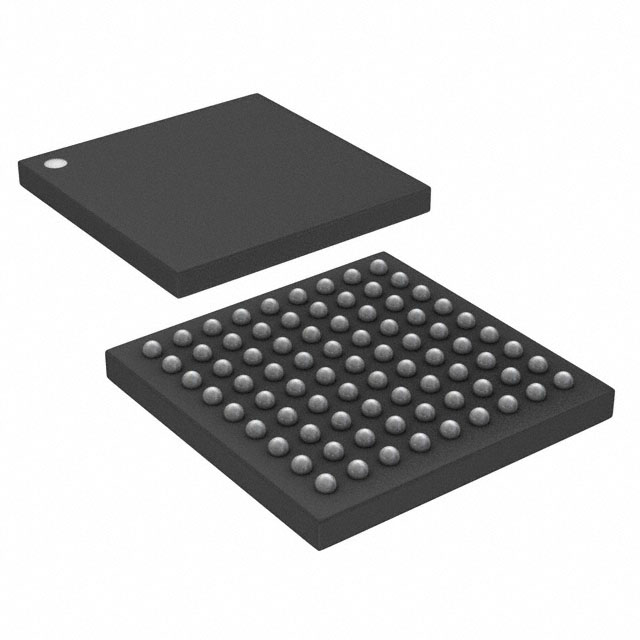

The AGLN250V2-ZCSG81 is an IGLOO nano Field Programmable Gate Array (FPGA) IC provided in an 81-WFBGA/CSBGA package. It delivers a balanced combination of logic capacity, on-chip RAM and I/O count suitable for compact commercial embedded designs.

With 6,144 logic elements, 36,864 bits of total on-chip RAM and up to 60 I/O pins, the device supports a range of control, interface and glue-logic functions while operating from a low core voltage range of 1.14 V to 1.575 V.

Key Features

• Core Logic  6,144 logic elements (cells) and an internal gate count of 250,000 provide mid-range programmable logic capacity for custom control and processing tasks.
• Embedded Memory  Total on-chip RAM of 36,864 bits supports buffering, small FIFOs and register storage without external memory.
• I/O Resources  Up to 60 general-purpose I/O pins make the device suitable for signal interfacing, peripheral control and sensor connectivity.
• Supply Voltage  Operates from a core voltage range of 1.14 V to 1.575 V to match low-voltage system domains.
• Package & Mounting  Available in an 81-WFBGA / CSBGA package with supplier device package listed as 81-CSP (5×5); surface-mount construction for board-level integration.
• Operating Range  Commercial temperature grade with an operating range of −20 °C to 85 °C for standard commercial deployments.
• Compliance  RoHS compliant to support environmental and manufacturing requirements.

Typical Applications

• Commercial Embedded Systems  Use the FPGA for control logic, protocol bridging and custom timing in commercial embedded products operating within the specified temperature range.
• Peripheral and Sensor Interfaces  Leverage the 60 I/O pins to aggregate sensors, handle GPIO expansion and implement custom interface logic.
• Signal Glue and Prototyping  Implement glue logic between components, protocol converters and early-stage hardware prototypes where mid-range logic and small on-chip RAM are sufficient.

Unique Advantages

• Balanced Logic Capacity: 6,144 logic elements and 250,000 gates provide a practical midpoint between small CPLDs and larger FPGAs for many commercial designs.
• On-Chip Memory for Local Storage: 36,864 bits of embedded RAM enables local buffering and small data structures without adding external memory components.
• Compact Surface-Mount Package: The 81-CSP (5×5) / 81-WFBGA package supports dense PCB layouts and space-constrained designs.
• Low-Voltage Operation: Core supply range of 1.14 V to 1.575 V aligns with low-voltage system domains and enables integration with modern power rails.
• Commercial Temperature Grade: Rated for −20 °C to 85 °C, suitable for typical commercial deployments.
• RoHS Compliant: Conforms to RoHS requirements for environmentally conscious manufacturing.

Why Choose AGLN250V2-ZCSG81?

The AGLN250V2-ZCSG81 positions itself as a compact, mid-capacity FPGA option for commercial embedded designers who need a combination of programmable logic, modest on-chip RAM and a practical I/O count in a small surface-mount package. Its supply voltage range and package choices make it suitable for integration into space-constrained boards and low-voltage systems.

This device is well suited to teams developing control logic, interface glue, and prototyping solutions where predictable performance, RoHS compliance and commercial-grade temperature operation are important. Its specifications support straightforward scalability within product families using similar IGLOO nano resources and footprint considerations.

Request a quote or submit an inquiry for pricing and availability of the AGLN250V2-ZCSG81 to begin integrating this IGLOO nano FPGA into your next commercial design.
