AGLP030V5-CS289

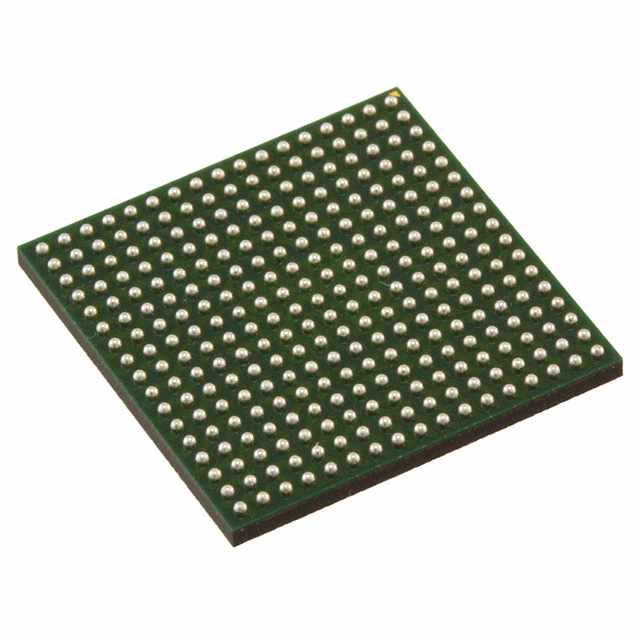

The AGLP030V5-CS289 is an IGLOO PLUS field programmable gate array (FPGA) IC from Microchip Technology. It provides 792 logic elements and approximately 30,000 gates with up to 120 general-purpose I/O pins in a compact 289-TFBGA (CSBGA) package.

Designed for commercial-grade embedded designs, the device offers a defined operating window and a compact surface-mount BGA footprint for space-constrained applications that require field-programmable logic and flexible I/O count.

Key Features

• Core Logic  792 logic elements delivering approximately 30,000 gates for implementing custom digital logic and glue-logic functions.
• I/O Capacity  120 I/O pins to support multiple peripheral connections, bus interfaces, and signal routing in a single device.
• Package  289-TFBGA (CSBGA) supplier device package listed as 289-CSP (14×14) for compact surface-mount board designs.
• Power  Supported core supply voltage range from 1.425 V to 1.575 V to match system power rails and regulator choices.
• Mounting & Assembly  Surface-mount device suitable for modern PCBA assembly processes using BGA placement.
• Temperature & Grade  Commercial operating temperature range of 0 °C to 85 °C and commercial grade classification for general-purpose electronics.
• Regulatory Compliance  RoHS compliant to meet lead-free assembly and environmental regulations.

Typical Applications

• Embedded Control  Implement programmable logic for control functions where moderate logic capacity and flexible I/O are required.
• I/O Expansion & Glue Logic  Consolidate multiple interface translators or glue-logic functions into a single FPGA to reduce board complexity.
• Prototyping & Development  Use in evaluation and development platforms that require reprogrammable logic and a compact BGA package.

Unique Advantages

• Compact BGA Footprint: The 289-TFBGA package and 14×14 supplier package size enable high-density PCB layouts and space savings.
• Balanced Logic Density: 792 logic elements and ~30,000 gates provide a balance of capacity for mid-range programmable logic tasks without excessive board-level complexity.
• Generous I/O Count: 120 I/Os support multiple peripherals and interfaces from a single device, reducing the need for external multiplexers or expanders.
• Defined Power Envelope: Narrow core voltage range (1.425–1.575 V) simplifies power-supply design and voltage management for the FPGA core.
• Commercial Temperature Suitability: Rated 0 °C to 85 °C for applications operating within commercial temperature environments.
• RoHS Compliance: Meets lead-free and restricted-substance requirements for contemporary electronics manufacturing.

Why Choose AGLP030V5-CS289?

The AGLP030V5-CS289 positions itself as a compact, commercial-grade FPGA option offering 792 logic elements, approximately 30,000 gates and 120 I/Os in a 289-TFBGA surface-mount package. Its defined supply-voltage range and commercial temperature rating make it suitable for a wide range of embedded designs that require reprogrammable logic and a high I/O count in a small form factor.

This device is appropriate for engineers and procurement teams seeking a Mid-density FPGA from Microchip Technology that fits space-constrained PCBs while providing the flexibility of field programmability and a clear compliance profile for lead-free assembly.

Request a quote or submit a purchase inquiry to check availability and lead times for the AGLP030V5-CS289.
