AGLP030V5-CSG289

The AGLP030V5-CSG289 is an IGLOO PLUS Field Programmable Gate Array (FPGA) from Microchip Technology provided in a 289-TFBGA (CSBGA) package. It delivers a compact, commercial-grade programmable logic solution with 792 logic elements and up to 120 general-purpose I/O pins.

Designed for commercial embedded designs that require moderate logic capacity and substantial I/O density, this device operates from a 1.425 V to 1.575 V supply and supports an ambient temperature range of 0 °C to 85 °C. Its small package and gate count make it suitable for space-constrained applications where integration and I/O count are priorities.

Key Features

• Programmable Logic Capacity — 792 logic elements (approximately 30,000 gates) provide mid-range combinational and sequential logic resources for custom functionality and glue-logic integration.
• I/O Density — Up to 120 I/O pins enable support for multiple parallel interfaces, sensor connections, and signal routing needs in a single device.

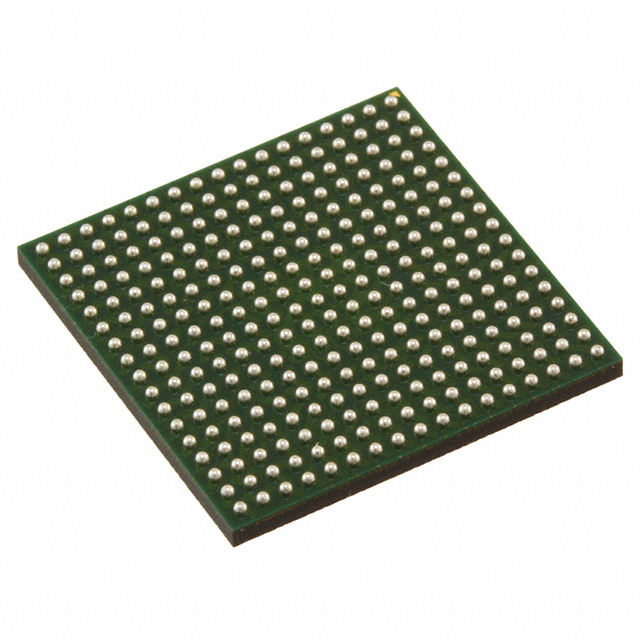

• Package and Mounting — 289-TFBGA (CSBGA) package, supplier device package 289-CSP (14x14), designed for surface-mount assembly to minimize PCB footprint.
• Power Supply — Operates from a 1.425 V to 1.575 V supply range, suitable for designs targeting this voltage domain.
• Commercial Temperature Grade — Rated for operation from 0 °C to 85 °C for commercial applications.
• Regulatory Compliance — RoHS compliant, supporting environmentally conscious manufacturing requirements.

Typical Applications

• Commercial Embedded Systems — Implement control logic and custom combinational or sequential functions where moderate logic capacity and up to 120 I/O are required.
• Interface and I/O Bridging — Consolidate multiple peripheral interfaces and protocol translation in a compact package to reduce board-level complexity.
• Consumer and Commercial Electronics — Integrate application-specific logic and manage external device I/O in space-constrained consumer and commercial products.
• Prototyping and Integration — Provide a mid-range programmable platform for validating hardware architectures and integrating custom logic into product designs.

Unique Advantages

• Balanced Logic and I/O: 792 logic elements paired with 120 I/O pins provide a practical balance for designs that need moderate logic capability and high interface density.
• Compact, Surface-Mount Package: 289-TFBGA (CSBGA) packaging and 289-CSP (14x14) supplier package reduce PCB area and support automated assembly.
• Low-Voltage Operation: Narrow supply range (1.425 V to 1.575 V) simplifies integration into systems operating at this voltage domain.
• Commercial Temperature Suitability: Rated 0 °C to 85 °C for reliable operation in mainstream commercial environments.
• RoHS Compliant: Meets RoHS requirements for environmentally conscious manufacturing and product stewardship.

Why Choose AGLP030V5-CSG289?

The AGLP030V5-CSG289 positions itself as a compact, commercial-grade FPGA option for designs needing a mid-range mix of programmable logic and substantial I/O. With 792 logic elements, roughly 30,000 gates of logic capacity, and support for up to 120 I/O, it is well suited to commercial embedded systems and interface-dense applications where board area and I/O count matter.

Backed by Microchip Technology, this IGLOO PLUS device offers a straightforward, RoHS-compliant solution for designers seeking a reliable, surface-mount FPGA in a 289-TFBGA package with defined supply and temperature ranges for commercial deployments.

Request a quote or submit an inquiry to receive pricing and availability for AGLP030V5-CSG289.
