AGLP030V5-CSG289I

The AGLP030V5-CSG289I is an IGLOO PLUS field programmable gate array from Microchip Technology, offered in a compact 289-TFBGA (289-CSP, 14×14) surface-mount package. It provides 792 logic elements and 120 programmable I/O pins for mid-range programmable logic tasks in industrial applications.

With a core supply window of 1.425 V to 1.575 V and an operating temperature range of −40 °C to 100 °C, this device targets embedded and industrial deployments where a predictable logic resource set and a small PCB footprint are important.

Key Features

• Logic Capacity — 792 logic elements delivering approximately 30,000 gates for moderate-complexity logic implementations.
• I/O — 120 programmable I/O pins to support multiple interfaces and signal channels on a single device.
• On-chip Memory — Total RAM bits: 0, for designs that rely on logic implementation without embedded RAM or that use external memory.
• Power — Core voltage supply range of 1.425 V to 1.575 V.

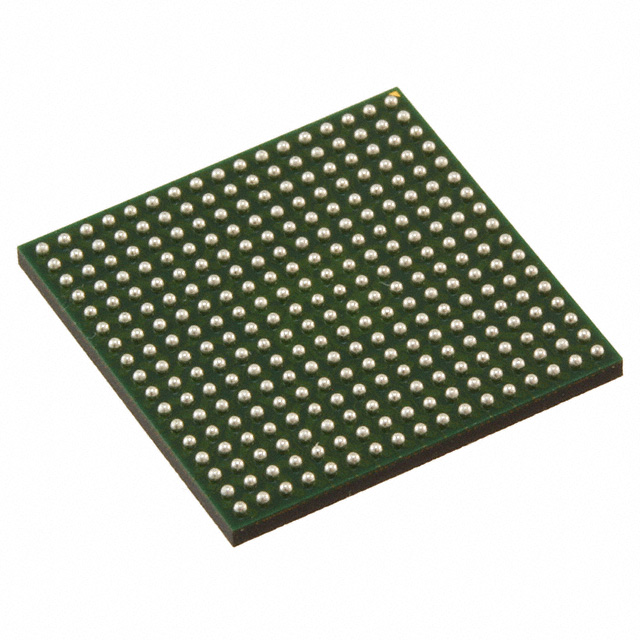

• Package — 289-TFBGA (CSBGA) in a 289-CSP (14×14) package case for compact, high-density board designs.
• Temperature Range — Industrial operating range from −40 °C to 100 °C.
• Mounting & Compliance — Surface-mount device and RoHS compliant for lead-free assembly workflows.

Typical Applications

• Industrial Control — Implement control logic, I/O expansion, and interface glue logic for factory automation and process-control equipment operating in industrial temperature ranges.
• Interface Bridging — Use the 120 I/O pins to handle protocol bridging and multi-signal interfacing between subsystems.
• Embedded Systems — Serve as the programmable logic core in compact embedded designs that require a defined logic resource set and a small BGA footprint.

Unique Advantages

• Compact, high-density package — 289-TFBGA / 289-CSP (14×14) reduces PCB area while delivering extensive I/O access.
• Industrial temperature capability — Rated from −40 °C to 100 °C for use in temperature-challenging environments.
• Predictable power requirements — Narrow core voltage range (1.425–1.575 V) simplifies power-supply design and verification.
• Clearly defined logic resources — 792 logic elements and ~30,000 gates provide a straightforward capacity target for mid-range designs.
• RoHS compliant — Supports lead-free manufacturing and environmental compliance requirements.

Why Choose AGLP030V5-CSG289I?

The AGLP030V5-CSG289I is positioned for engineers who need a Mid-range IGLOO PLUS FPGA with a balance of logic capacity and high I/O count in a compact surface-mount BGA. Its industrial temperature rating and precise supply-voltage range make it suitable for embedded and industrial applications where board space, I/O density, and predictable logic resources matter.

Manufactured by Microchip Technology, this device offers a clear specification set for teams designing mid-complexity programmable logic into compact, temperature-demanding systems.

Request a quote or submit an inquiry to receive pricing and availability information for AGLP030V5-CSG289I.
