M2GL005-TQ144

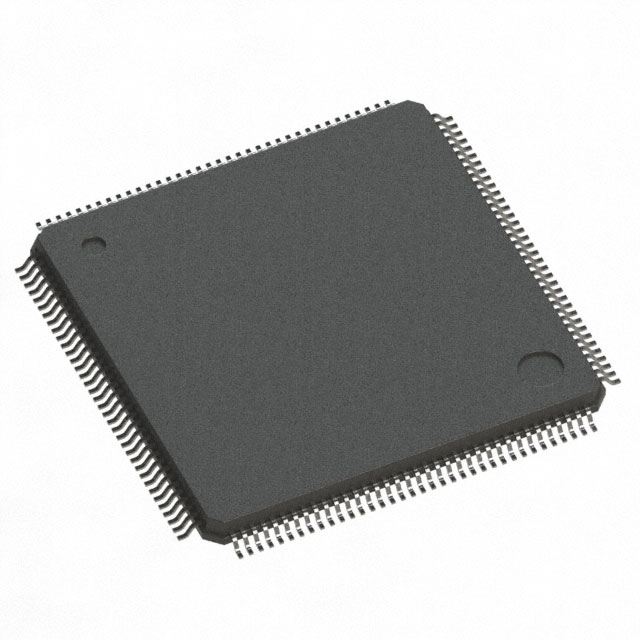

The M2GL005-TQ144 is an IGLOO2 field programmable gate array (FPGA) from Microchip Technology supplied in a 144-LQFP surface-mount package. It provides 6060 logic elements, approximately 0.72 Mbits of embedded memory, and 84 user I/O pins in a compact 144-TQFP (20×20) footprint.

Designed for commercial-grade embedded designs, this FPGA supports low-voltage operation across a wide supply range and offers on-chip resources suitable for moderate-complexity logic, control, and I/O consolidation in space-constrained systems.

Key Features

• Logic Capacity  6060 logic elements delivered for implementing custom digital logic and control functions.
• Embedded Memory  Approximately 0.72 Mbits of on-chip RAM to store configuration data, buffers, or small lookup tables without external memory.
• I/O Resources  84 general-purpose I/O pins for interfacing with sensors, peripherals, and external logic.
• Power Range  Flexible voltage supply from 1.14 V to 2.625 V to accommodate a range of system power rails.
• Package and Mounting  144-LQFP (supplier package: 144-TQFP, 20×20) in a surface-mount form factor for compact PCB layouts.
• Temperature and Grade  Commercial grade operation with an ambient temperature range of 0 °C to 85 °C.
• Environmental Compliance  RoHS compliant for regulatory and manufacturing consistency.
• Manufacturer  Built by Microchip Technology, providing continuity within Microchip’s FPGA product family.

Typical Applications

• Embedded Control  Implement control logic and state machines for commercial embedded systems where moderate logic density and on-chip RAM reduce external component count.
• Prototyping and Development  Use the FPGA for hardware prototyping or proof-of-concept designs that require reprogrammable logic and flexible I/O.
• I/O Aggregation  Consolidate multiple peripheral interfaces or custom glue logic into a single device using the available 84 I/O pins.

Unique Advantages

• Balanced Logic and Memory  6060 logic elements combined with approximately 0.72 Mbits of embedded RAM provide a practical balance for mid-density designs without immediate need for external memory.
• Wide Supply Flexibility  Operates across 1.14 V to 2.625 V supplies, enabling integration with a variety of system voltage domains.
• Compact, Surface-Mount Package  144-LQFP (20×20) surface-mount package simplifies PCB integration in space-constrained designs.
• Commercial Temperature Rating  Rated for 0 °C to 85 °C operation to match typical commercial deployment environments.
• RoHS Compliant  Meets RoHS requirements to support environmentally conscious manufacturing and assembly processes.

Why Choose M2GL005-TQ144?

The M2GL005-TQ144 offers a concise combination of logic density, embedded memory, and I/O count in a compact 144-LQFP surface-mount package, making it suitable for commercial embedded applications that need reprogrammable logic and moderate on-chip resources. Its wide supply range and RoHS compliance help simplify system design and manufacturing choices.

This FPGA is a practical choice for engineers and procurement teams building mid-complexity designs who require a commercially rated, Microchip-supplied programmable device with clear on-chip resources and a compact footprint.

Request a quote or contact sales to inquire about availability, pricing, and lead times for the M2GL005-TQ144.
