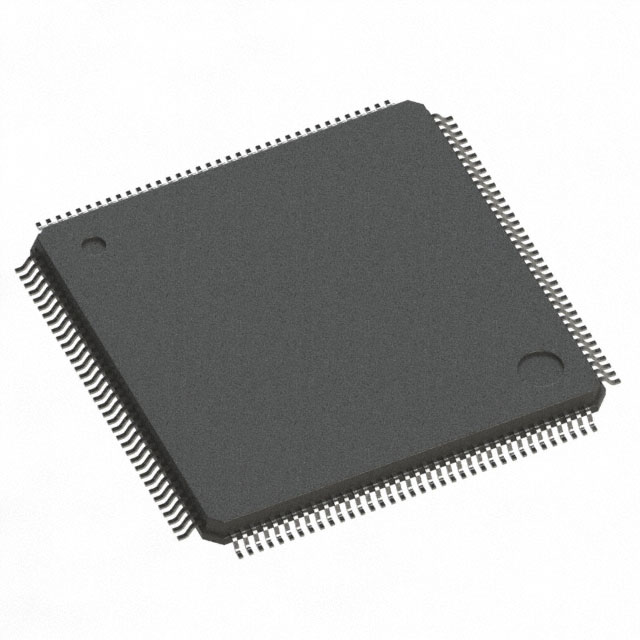

M2GL005-TQG144

The M2GL005-TQG144 is an IGLOO2 family Field Programmable Gate Array (FPGA) from Microchip Technology, offering reconfigurable digital logic in a 144‑lead LQFP package. It provides a balance of logic capacity, on‑chip memory, and I/O density for commercial embedded designs.

Key attributes include 6,060 logic elements, approximately 0.72 Mbits of embedded RAM, 84 user I/Os, a wide supply voltage range (1.14 V to 2.625 V), and a commercial operating temperature range of 0 °C to 85 °C.

Key Features

• Core Logic 6,060 logic elements provide programmable digital resources for implementing custom logic functions and control paths.
• Embedded Memory Approximately 0.72 Mbits of on‑chip RAM for local buffering, state storage, and small data structures.
• I/O Density 84 user I/Os allow direct interfacing to peripherals and external devices in compact system designs.
• Power Supply Flexibility Supports a supply voltage range from 1.14 V to 2.625 V to accommodate a variety of system rail configurations.
• Package & Mounting Surface‑mount 144‑LQFP package; supplier device package listed as 144‑TQFP (20x20), suitable for dense PCB layouts.
• Commercial Grade & Temperature Rated for commercial use with an operating temperature range of 0 °C to 85 °C.
• Environmental Compliance RoHS compliant for environmentally responsible procurement and manufacturing.

Typical Applications

• Embedded Systems — Implement custom control logic and state machines using the device's 6,060 logic elements and on‑chip memory.
• Interface Bridging — Use 84 I/Os to realize protocol adapters and glue logic between disparate peripherals and subsystems.
• Prototyping and Development — Evaluate and validate digital designs in a commercial FPGA package suitable for board‑level testing.

Unique Advantages

• Right‑sized Logic Capacity: 6,060 logic elements offer a moderate programmable resource set for a broad range of commercial designs.
• On‑chip Memory: Approximately 0.72 Mbits of embedded RAM supports local data buffering and small working sets without external memory.
• Generous I/O Count: 84 user I/Os let you consolidate multiple peripheral connections into a single device.
• Flexible Power Options: Operates from 1.14 V to 2.625 V to integrate with different system voltage domains.
• Compact, Surface‑mount Package: 144‑lead LQFP (supplier 144‑TQFP, 20x20) simplifies PCB placement and routing for dense boards.
• Commercial and RoHS Compliant: Designed for commercial product lines with environmental compliance for manufacturing.

Why Choose M2GL005-TQG144?

The M2GL005-TQG144 delivers a balanced combination of reconfigurable logic, embedded memory, and ample I/O in a compact 144‑lead package from Microchip Technology. Its 6,060 logic elements and approximately 0.72 Mbits of on‑chip RAM make it well suited for commercial embedded applications that require moderate programmable resources and local data storage.

With a wide supply voltage range and a commercial operating temperature window, this IGLOO2 FPGA is a practical choice for designers seeking a single‑device solution to implement custom logic, interface functions, or prototype systems while maintaining RoHS compliance.

Request a quote or submit an inquiry to obtain pricing and availability for the M2GL005-TQG144.
