M2GL005S-TQG144I

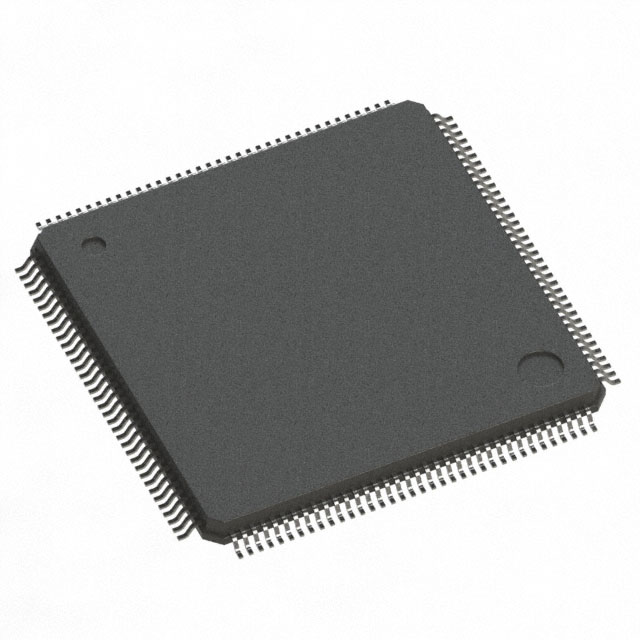

The M2GL005S-TQG144I is an IGLOO2 field programmable gate array (FPGA) from Microchip Technology supplied in a 144-LQFP surface-mount package. It delivers a mid-range logic capacity with embedded memory and a broad I/O complement for industrial embedded designs.

Designed for applications that require moderate logic density, on-chip RAM, and reliable operation across an industrial temperature range, this device provides a balance of integration and flexible interfacing in a compact 144-pin footprint.

Key Features

• Core Logic: 6060 logic elements provide the programmable fabric required for custom digital functions, state machines, and glue logic.
• Embedded Memory: Approximately 0.72 Mbits of on-chip RAM (719,872 total RAM bits) for buffering, lookup tables, and small data structures.
• GPIO and Interfaces: 84 user I/O pins support interfacing to peripherals, sensors, and external logic without additional I/O expanders.
• Power Supply Range: Supports a supply voltage range from 1.14 V to 2.625 V, allowing integration into a variety of low-voltage system designs.
• Package & Mounting: 144-LQFP package (supplier device package: 144-TQFP, 20 × 20) in a surface-mount form factor for PCB-level integration.
• Industrial Temperature Grade: Specified for operation from −40 °C to 100 °C, suitable for industrial and temperature-challenging environments.
• Regulatory Compliance: RoHS compliant for environmentally conscious product designs and manufacturing.

Typical Applications

• Industrial Automation: Implement control logic, I/O aggregation, and deterministic sequencing where industrial temperature operation and moderate logic capacity are required.
• Instrumentation & Test Equipment: Use on-board logic and embedded RAM for signal conditioning, data buffering, and custom measurement logic in bench and field instruments.
• Communications & Protocol Bridging: Bridge between parallel and serial interfaces or implement protocol adaptation and packet buffering using the device's I/O and RAM resources.
• Embedded Systems & Prototyping: Provide custom peripherals, glue logic, and state machines in compact, surface-mount designs with up to 84 I/Os.

Unique Advantages

• Right-sized Logic Capacity: 6060 logic elements offer ample programmable resources for mid-complexity designs without excessive cost or footprint.
• On-chip Memory: Approximately 0.72 Mbits of embedded RAM reduces the need for external memory for many buffering and LUT-based functions.
• Flexible I/O Count: 84 I/O pins enable direct connection to a wide range of peripherals and sensors, simplifying board-level design.
• Wide Voltage Support: Operates across a 1.14 V to 2.625 V supply window, supporting low-voltage system architectures.
• Industrial-rated Operation: Specified −40 °C to 100 °C operation for reliable deployment in temperature-demanding environments.
• Compact Surface-mount Package: 144-LQFP (20 × 20 TQFP footprint) provides a balance of pin count and PCB area for dense designs.

Why Choose M2GL005S-TQG144I?

The M2GL005S-TQG144I combines a practical logic density, substantial on-chip RAM, and a versatile I/O set in an industrial-grade, surface-mount 144-LQFP package. Its specified supply voltage range and temperature rating make it suitable for embedded and industrial applications where a mid-range FPGA is required.

Backed by Microchip Technology as the manufacturer, this IGLOO2 FPGA is a solid choice for engineers seeking a balance of integration, I/O flexibility, and environmental robustness in a compact package.
