M2GL050T-FGG896I

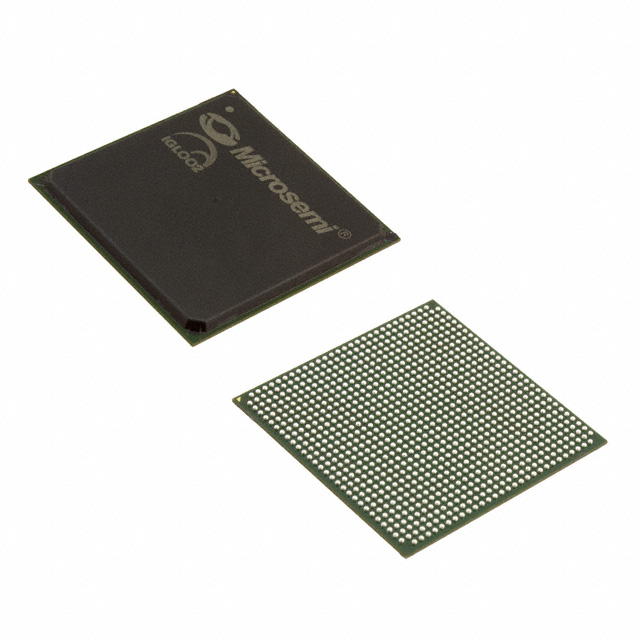

The M2GL050T-FGG896I is an IGLOO2 family Field Programmable Gate Array (FPGA) from Microchip Technology, supplied in a 896-ball BGA package. It provides a balanced combination of logic density, embedded memory, and high I/O count targeted at industrial-grade embedded designs.

With 56,340 logic elements, approximately 1.87 Mbits of on-chip RAM and 377 I/O, this device suits applications that require moderate to high programmable logic capacity, flexible interfacing and extended operating conditions. The device supports a wide supply voltage range and industrial temperature operation.

Key Features

• Logic Capacity  56,340 logic elements for implementing custom digital logic, state machines and peripheral glue logic.
• Embedded Memory  Approximately 1.87 Mbits of on-chip RAM to support buffering, FIFOs and memory-mapped functions without external RAM.
• Flexible I/O  377 I/O pins to enable broad interfacing with sensors, peripherals and communication transceivers.
• Power and Voltage  Supports a supply voltage range from 1.14 V to 2.625 V to accommodate a variety of system power architectures.
• Package and Mounting  896-ball FBG A package (31 × 31 mm) for high-density board designs; surface-mount mounting type suitable for standard PCB assembly.
• Industrial Temperature Range  Rated for operation from −40 °C to 100 °C for deployment in demanding environments.
• Regulatory Compliance  RoHS compliant for environmental and manufacturing compatibility.

Typical Applications

• Industrial Control  Implement custom control logic, deterministic I/O handling and protocol bridging for factory automation and PLC systems.
• Communications Infrastructure  Support mid-range packet processing, protocol adaptation and interface aggregation using available logic and I/O resources.
• Data Acquisition and Processing  Aggregate sensor inputs, perform real-time preprocessing and buffering using on-chip RAM and programmable logic.
• Embedded System Glue Logic  Replace multiple discrete components by consolidating bus interfaces, timing logic and peripheral control into a single FPGA device.

Unique Advantages

• High Logic Integration: 56,340 logic elements allow complex functions to be consolidated on a single device, reducing board-level component count.
• On-Chip Memory: Approximately 1.87 Mbits of embedded RAM minimizes reliance on external memory for buffering and small data stores.
• Wide I/O Count: 377 I/Os provide flexible connectivity to a broad set of peripherals and external interfaces without immediate need for multiplexing.
• Flexible Power Envelope: Support for 1.14 V to 2.625 V supplies enables integration into a variety of system power domains.
• Industrial Robustness: Rated for −40 °C to 100 °C operation, suitable for installations requiring extended temperature capability.
• RoHS Compliant: Meets environmental compliance expectations for modern electronics production.

Why Choose M2GL050T-FGG896I?

The M2GL050T-FGG896I positions itself as a capable IGLOO2 FPGA option for industrial and embedded designs that require a balanced mix of logic capacity, embedded memory and extensive I/O. Its voltage flexibility and industrial temperature rating make it suitable for robust systems deployed in varied environments.

Backed by Microchip Technology, this device is suited for engineers and designers looking to consolidate functions, streamline BOMs and create scalable programmable solutions with a single FPGA platform.

If you would like pricing, lead-time or availability information, request a quote or submit an inquiry for the M2GL050T-FGG896I and our team will respond with the details you need.
