M2GL050T-FG896I

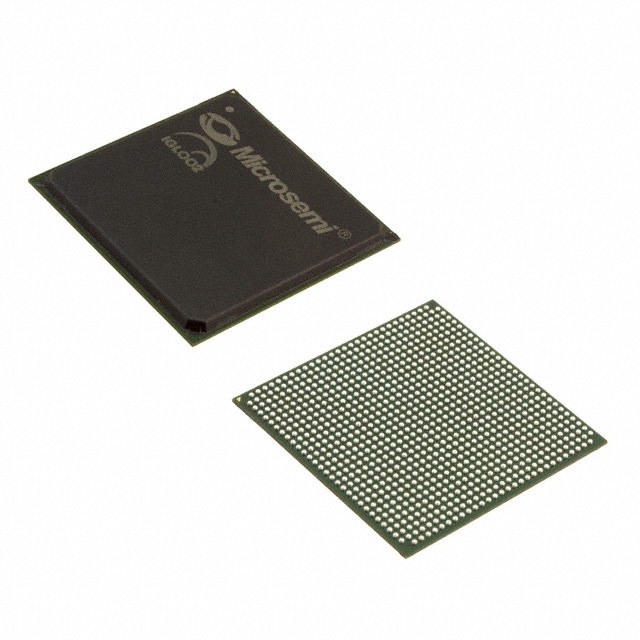

The M2GL050T-FG896I is an IGLOO2 Field Programmable Gate Array (FPGA) IC from Microchip Technology. It delivers 56,340 logic elements and approximately 1.87 Mbits of embedded memory in a compact 896-ball BGA package.

Engineered for industrial environments, this surface-mount FPGA supports a wide operating temperature range and flexible supply rails, making it suitable for designs that require high logic density, substantial on-chip RAM, and a large I/O count.

Key Features

• Core Logic  Provides 56,340 logic elements for implementing custom digital functions and control logic.
• Embedded Memory  Approximately 1.87 Mbits of on-chip RAM to accommodate buffer, state machine, and data-path storage needs.
• I/O Capability  377 I/O pins to support extensive peripheral interfacing and parallel connectivity requirements.
• Power  Operates across a broad supply range from 1.14 V to 2.625 V, allowing flexible integration with various system power rails.
• Package and Mounting  896-FBGA (31 × 31 mm) package, surface-mount mounting for high-density board designs.
• Temperature and Grade  Industrial-grade device rated for operation from −40 °C to 100 °C.
• Environmental Compliance  RoHS compliant, meeting common regulatory requirements for lead-free assembly.

Typical Applications

• Industrial Control Systems  Leverage the industrial temperature rating and reconfigurable logic for motor control, PLC functions, and factory automation interfaces.
• Embedded Processing and I/O Aggregation  Use the high logic element count and 377 I/Os to consolidate peripheral handling and custom protocol bridging on a single device.
• Communications and Data Pathing  Apply the combination of logic density and embedded memory to implement packet buffering, custom framing, and protocol adaptation.
• Compact, High-Density Designs  The 896-FBGA package enables space-efficient integration where board footprint and I/O density are important.

Unique Advantages

• High Logic Density: 56,340 logic elements deliver capacity for complex state machines, datapaths, and custom accelerators.
• Substantial On-Chip Memory: Approximately 1.87 Mbits of embedded RAM reduces external memory needs and simplifies board-level design.
• Extensive I/O: 377 I/Os support broad connectivity, minimizing the need for additional interface chips.
• Wide Supply Flexibility: 1.14 V to 2.625 V operating range eases integration with diverse power architectures.
• Industrial Reliability: Rated for −40 °C to 100 °C operation, suitable for demanding environmental conditions.
• RoHS Compliant: Supports lead-free manufacturing processes and regulatory requirements.

Why Choose M2GL050T-FG896I?

The M2GL050T-FG896I combines a high logic element count and significant embedded memory with a large I/O complement and an industrial temperature rating. This balance of resources and environmental ruggedness makes it well suited for designers who need reconfigurable logic, local memory, and extensive interfacing in compact, surface-mount form factors.

Manufactured by Microchip Technology, this IGLOO2 FPGA offers a practical option for teams focused on industrial and embedded applications that demand reliable operation across wide temperature and voltage conditions.

Request a quote or submit an inquiry to receive pricing, availability, and further technical information for the M2GL050T-FG896I.
