M2GL050T-FGG896

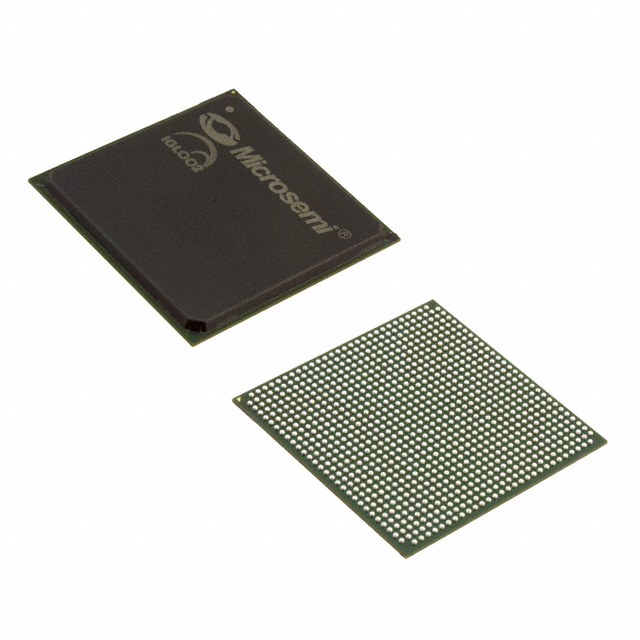

The M2GL050T-FGG896 is an IGLOO2 field programmable gate array (FPGA) provided in an 896-ball BGA package. It delivers a high logic element count and substantial on-chip RAM for system-level digital designs that require a combination of logic capacity and I/O density.

With a wide supply voltage range and a commercial operating temperature rating, this device is suited for commercial embedded applications where integration, moderate-temperature operation, and a compact BGA footprint are priorities.

Key Features

• Logic Capacity  56,340 logic elements provide substantial programmable logic resources for complex digital functions and custom architectures.
• Embedded Memory  Approximately 1.87 Mbits of on-chip RAM to support data buffering, FIFOs, and local storage for implemented logic.
• I/O Density  377 I/O pins enable extensive peripheral interfacing, parallel buses, and multi-channel connectivity within a single device.
• Power Supply Flexibility  Supported supply voltage range from 1.14 V to 2.625 V to accommodate a variety of core and I/O power schemes.
• Package & Mounting  896-BGA (896-FBGA, 31 × 31 mm) surface-mount package for high-density board integration and compact system layouts.
• Temperature & Grade  Commercial grade device rated for operation from 0°C to 85°C for standard commercial environments.
• Environmental Compliance  RoHS-compliant construction to meet common environmental and manufacturing requirements.

Typical Applications

• Custom digital logic and prototyping  Use the 56,340 logic elements to implement complex state machines, accelerators, and custom processing blocks during system development.
• High-density I/O interfaces  The 377 I/Os support bridging and aggregation of multiple peripherals, sensor arrays, or parallel data streams within compact systems.
• Memory-intensive embedded functions  Approximately 1.87 Mbits of on-chip RAM enable local buffering, data staging, and small-scale dataset handling close to logic.

Unique Advantages

• High logic resource count: 56,340 logic elements provide room to consolidate multiple functions into a single FPGA, reducing board-level component count.
• Significant embedded memory: Approximately 1.87 Mbits of RAM lets designers implement data buffers and temporary storage without external memory.
• Extensive I/O capability: 377 I/Os allow direct connection to numerous peripherals and interfaces, simplifying routing and system integration.
• Flexible power range: The 1.14 V to 2.625 V supply window supports varied power architectures and design choices for core and I/O domains.
• Compact BGA footprint: The 896-FBGA (31 × 31 mm) surface-mount package enables high-density PCB designs while maintaining robust signal routing.
• RoHS compliant: Environmentally compliant manufacturing reduces regulatory risk for standard commercial products.

Why Choose M2GL050T-FGG896?

The M2GL050T-FGG896 combines substantial programmable logic, nearly 1.87 Mbits of embedded RAM, and a high I/O count in a compact 896-BGA package, offering a balanced platform for commercial embedded designs that require integration and I/O flexibility. Its supported voltage range and commercial temperature rating make it appropriate for a wide range of standard operating environments.

This device is well suited to customers designing systems that need dense logic capacity and plentiful I/O in a single FPGA footprint, providing a path to consolidate functionality and reduce system complexity.
