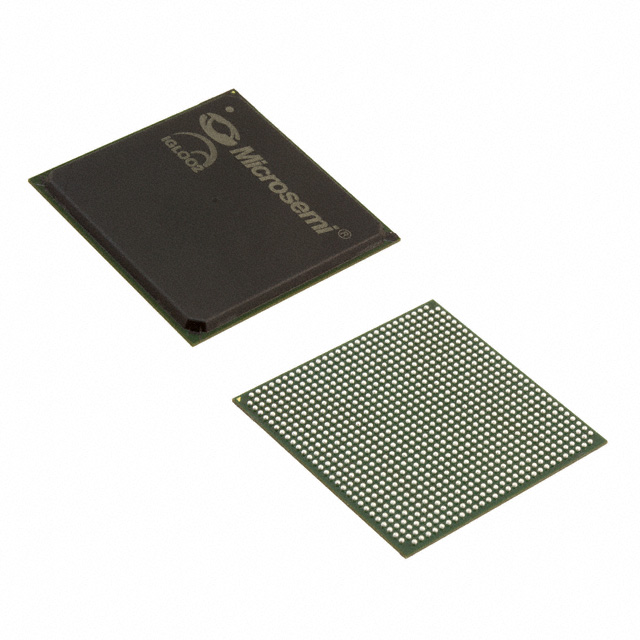

M2GL050TS-1FGG896

The M2GL050TS-1FGG896 is an IGLOO2 field programmable gate array (FPGA) from Microchip Technology. It delivers a mid-range programmable-logic solution with a balance of logic capacity, embedded memory and dense I/O for commercial applications.

With 56,340 logic elements, approximately 1.87 Mbits of on-chip RAM and support for up to 377 I/O, this surface-mount FPGA is intended for designs that require flexible digital logic, embedded memory and a compact 896-ball BGA package.

Key Features

• Logic Resources — 56,340 logic elements provide programmable logic capacity for custom digital functions and control logic.
• Embedded Memory — Approximately 1.87 Mbits of on-chip RAM enables local data buffering and state storage without external memory.
• I/O Density — Up to 377 I/O pins support a wide range of interfaces and parallel connectivity in a single device.
• Power Supply Range — Supports core and I/O operation across a supply range of 1.14 V to 2.625 V, allowing use in varied power architectures.
• Package & Mounting — 896-ball BGA (supplier package: 896-FBGA, 31×31) in a surface-mount form factor for high-density board designs.
• Commercial Temperature Grade — Rated for 0 °C to 85 °C operation, suitable for standard commercial environments.
• Regulatory — RoHS-compliant for lead-free manufacturing and environmental compliance.

Typical Applications

• Programmable Logic Integration — Implement custom digital functions and control logic using 56,340 logic elements and embedded RAM for local data handling.
• Interface Aggregation — Consolidate multiple parallel and serial interfaces using up to 377 I/O to simplify board-level connectivity.
• Embedded Control — Deploy the FPGA for on-board state machines, protocol handling and glue logic where integrated memory and reconfigurability are needed.

Unique Advantages

• Significant Logic Capacity: 56,340 logic elements enable substantial custom logic implementation without moving to larger device families.
• On-Chip Memory: Approximately 1.87 Mbits of embedded RAM reduces dependence on external memory, simplifying BOM and layout.
• High I/O Count: 377 available I/O pins provide flexibility to interface with multiple peripherals and subsystems directly.
• Compact BGA Package: The 896-ball BGA (31×31) enables high pin density in a space-efficient footprint for compact designs.
• Wide Supply Range: Operates across 1.14 V to 2.625 V, accommodating varied power schemes and interfacing requirements.
• Commercial Qualification: Rated for 0 °C to 85 °C operation and RoHS-compliant for standard commercial deployments.

Why Choose M2GL050TS-1FGG896?

The M2GL050TS-1FGG896 positions itself as a versatile IGLOO2 FPGA for designers who need a balanced combination of logic capacity, on-chip memory and dense I/O in a compact BGA package. Its specifications make it well suited for commercial embedded systems that require reconfigurable logic, localized memory, and multiple interface connections.

Manufactured by Microchip Technology and provided in a surface-mount 896-BGA package, this FPGA offers a practical, RoHS-compliant option for teams targeting robust, scalable digital designs within the 0 °C to 85 °C commercial temperature envelope.

Request a quote or submit an inquiry to receive pricing and availability for the M2GL050TS-1FGG896. Our team can provide lead-time and ordering details to support your project schedule.
