M2GL150-FCV484

The M2GL150-FCV484 is an IGLOO2 field programmable gate array (FPGA) from Microchip Technology. It integrates 146,124 logic elements with approximately 5.12 Mbits of embedded memory and supports up to 248 general-purpose I/O, delivering a platform for complex, user-definable digital logic implementations.

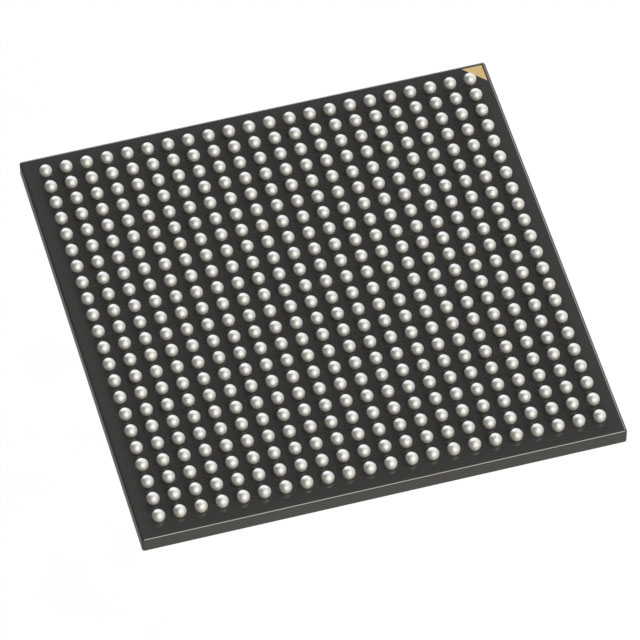

Packaged in a 484-BFBGA (supplier package: 484-FBGA, 19×19) surface-mount device and operating over a commercial temperature range, this FPGA suits designs that require high logic density, sizable on-chip memory, and a compact BGA footprint while operating from a 1.14 V to 2.625 V supply range.

Key Features

• Logic Capacity  146,124 logic elements provide substantial programmable fabric for implementing complex custom logic, state machines, and data-paths.
• On-Chip Memory  Approximately 5.12 Mbits of embedded RAM to support buffering, FIFOs, and local data storage without external memory in many use cases.
• I/O Resources  Up to 248 I/O pins enable broad interfacing options for peripherals, sensors, and board-level signals.
• Power Supply Range  Operates from 1.14 V to 2.625 V, allowing flexibility for different system power architectures.
• Package & Mounting  484-BFBGA package (supplier 484-FBGA, 19×19) with surface-mount mounting for compact PCB layouts and high pin density.
• Commercial Temperature  Rated for 0 °C to 85 °C operation for standard commercial applications.
• RoHS Compliant  Manufactured in compliance with RoHS requirements.

Unique Advantages

• High Logic Density: 146,124 logic elements enable implementation of large-scale custom logic and multiple parallel functions on a single device, reducing the need for multiple FPGAs.
• Substantial Embedded Memory: Approximately 5.12 Mbits of on-chip RAM support local data buffering and state storage, simplifying board-level memory design.
• Generous I/O Count: 248 I/Os allow flexible connectivity to a wide range of external components and interfaces without extensive multiplexing.
• Compact BGA Footprint: The 484-BFBGA (484-FBGA, 19×19) package provides high pin count in a space-efficient form factor suitable for dense PCB designs.
• Flexible Power Options: Wide supply voltage range (1.14 V–2.625 V) allows integration into varied system power domains.
• Compliance and Commercial Readiness: RoHS compliance and a commercial temperature rating make the device suitable for production in mainstream electronics markets.

Why Choose M2GL150-FCV484?

The M2GL150-FCV484 delivers a combination of high logic element count, significant embedded memory, and a large I/O complement in a compact BFBGA package. These attributes make it well suited for designs that require dense programmable logic, substantial on-chip RAM, and broad interfacing capability within commercial-temperature applications.

Backed by Microchip Technology, this IGLOO2 FPGA offers a clear path for system designers seeking to consolidate functions, reduce board-level complexity, and leverage a well-known supplier for ongoing availability and product information.

Request a quote or submit an inquiry to receive pricing and availability for the M2GL150-FCV484.
