M2GL150T-1FCV484

The M2GL150T-1FCV484 is an IGLOO2 Field Programmable Gate Array (FPGA) from Microchip Technology. It provides a programmable logic fabric with a high logic element count and substantial on-chip memory for implementing complex digital functions.

Key hardware characteristics include 146,124 logic elements, approximately 5.12 Mbits of embedded memory (5,120,000 total RAM bits), 248 I/O, a compact 484-BFBGA package, a 1.14 V to 2.625 V supply range, and commercial operating temperature from 0°C to 85°C. The device is supplied in a surface-mount package and is RoHS compliant.

Key Features

• Core / Logic 146,124 logic elements provide substantial programmable resources for implementing custom digital designs and system logic.
• Embedded Memory Approximately 5.12 Mbits of on-chip RAM (5,120,000 total RAM bits) for data buffering, state storage, and fast local memory access.
• I/O 248 general-purpose I/O pins to support dense peripheral and interconnect requirements.
• Power Flexible voltage supply range from 1.14 V to 2.625 V to accommodate various supply domain requirements.

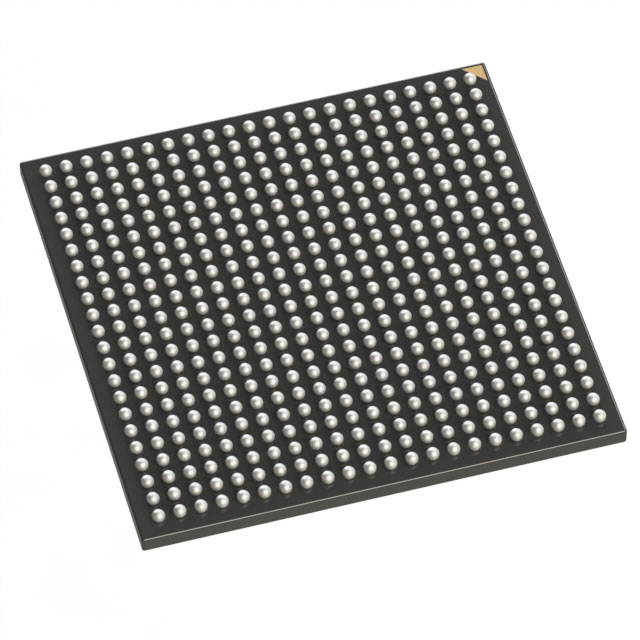

• Package 484-BFBGA package case, supplied as 484-FBGA (19×19) in a surface-mount format for compact board-level integration.
• Operating Range & Grade Commercial grade device rated for 0°C to 85°C operation.
• Environmental Compliance RoHS compliant.

Typical Applications

• Custom digital logic Implement application-specific processing, control logic, and protocol handling using programmable fabric and embedded memory.
• Prototyping and system integration Use the FPGA for hardware validation, design iteration, and integration of digital subsystems.
• High-density I/O interfacing Leverage 248 I/O for connecting multiple peripherals, sensors, and interfaces on a single device.

Unique Advantages

• High logic capacity: 146,124 logic elements enable complex logic implementations without partitioning across multiple devices.
• Substantial on-chip memory: Approximately 5.12 Mbits of embedded RAM reduces dependence on external memory for buffering and local storage.
• Generous I/O count: 248 I/O pins support dense interfacing and reduce the need for additional I/O expanders.
• Flexible supply voltage: 1.14 V to 2.625 V range offers compatibility with a variety of system voltage domains.
• Compact surface-mount BFBGA package: 484-BFBGA (484-FBGA, 19×19) balances pin density with a small board footprint for space-constrained designs.
• Commercial grade and RoHS compliant: Specified for 0°C to 85°C operation and compliant with RoHS requirements for environmental standards.

Why Choose M2GL150T-1FCV484?

The M2GL150T-1FCV484 combines a high logic element count, meaningful on-chip memory, and a large I/O complement in a compact surface-mount BFBGA package. These attributes make it suitable for designers seeking a single-device solution for complex digital functions, dense interfacing, and consolidated system logic.

Manufactured by Microchip Technology and offered as a commercial-grade, RoHS-compliant device, this IGLOO2 FPGA is a practical option for teams focused on scalable digital designs that require substantial programmable resources and flexible power interfacing.

Request a quote or submit an inquiry to receive pricing and availability information for the M2GL150T-1FCV484.
