M2GL150T-1FCV484M

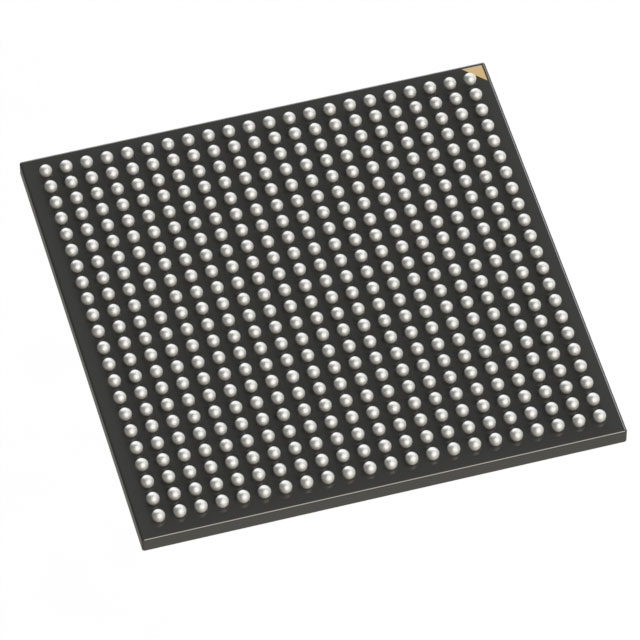

The M2GL150T-1FCV484M is an IGLOO2 field-programmable gate array (FPGA) from Microchip Technology delivering 146,124 logic elements and approximately 5.12 Mbits of embedded memory. It combines a high logic density and substantial on-chip RAM with a 248-pin I/O count in a 484-BFBGA (19×19) surface-mount package.

Designed and qualified to military standards (Grade: Military, Qualification: MIL-STD-883), the device supports a wide operating range with a supply voltage from 1.14 V to 2.625 V and an operating temperature range of −55°C to 125°C.

Key Features

• Core / Logic  146,124 logic elements provide the capacity for complex programmable logic implementations.
• Embedded Memory  Approximately 5.12 Mbits of on-chip RAM to support buffering, state storage, and data processing functions.
• I/O and Packaging  248 user I/Os in a 484-BFBGA (19×19) surface-mount package for dense board-level integration.
• Voltage Supply  Operates across a supply range of 1.14 V to 2.625 V to accommodate different power-domain designs.
• Temperature & Environmental  Rated operating temperature from −55°C to 125°C to meet demanding thermal requirements.
• Qualification & Grade  Military grade with MIL-STD-883 qualification for applications requiring formal military-level qualification.
• Mounting Type  Surface-mount package suitable for modern PCB assembly and compact system designs.

Typical Applications

• Military and Defense Systems  Uses the device's military grade and MIL-STD-883 qualification along with the −55°C to 125°C operating range for deployment in qualified defense electronics.
• High-density Digital Processing  Leverages 146,124 logic elements and approximately 5.12 Mbits of embedded memory for complex signal processing and control logic.
• I/O-Intensive Embedded Control  Supports 248 I/Os for systems requiring extensive peripheral interfacing and high pin-count integration.
• Space-Constrained Surface-Mount Designs  484-BFBGA (19×19) package enables compact assembly where board real estate is limited.

Unique Advantages

• High Logic Density: 146,124 logic elements enable implementation of large, complex designs within a single FPGA device.
• Substantial On-Chip Memory: Approximately 5.12 Mbits of embedded RAM reduces external memory dependence and simplifies system architecture.
• Robust I/O Count: 248 I/Os provide flexibility for connecting numerous peripherals, sensors, and interfaces without additional multiplexing hardware.
• Military Qualification: MIL-STD-883 qualification and military grade designation support use in qualified defense applications.
• Wide Operating Range: Supply voltage of 1.14 V to 2.625 V and −55°C to 125°C operation accommodate varied power architectures and harsh temperature environments.
• Compact Surface-Mount Package: 484-BFBGA (19×19) package reduces PCB footprint while maintaining high interconnect density.

Why Choose M2GL150T-1FCV484M?

The M2GL150T-1FCV484M delivers a balance of high logic capacity, significant embedded memory, and a large I/O complement in a compact 484-BFBGA surface-mount package. Its military grade and MIL-STD-883 qualification, combined with a wide operating temperature range and flexible supply voltage, make it a clear option for designs that require proven qualification and thermal robustness.

Backed by Microchip Technology and built on the IGLOO2 FPGA offering, this device is suited for engineering teams and procurement looking for a militarily qualified FPGA platform with substantial on-chip resources for demanding embedded and defense-oriented designs.

Request a quote or submit a purchase inquiry to receive pricing, availability, and lead-time information for the M2GL150T-1FCV484M.
