M2GL150TS-FCV484

The M2GL150TS-FCV484 is an IGLOO2 field programmable gate array (FPGA) from Microchip Technology in a 484-BFBGA package. It provides a high density of programmable logic and embedded memory suitable for commercial embedded systems that require configurable I/O and on-chip RAM.

With 146,124 logic elements, approximately 5.12 Mbits of embedded memory and 248 user I/O, this FPGA targets designers who need substantial on-chip resources within a compact surface-mount package and a commercial operating temperature range.

Key Features

• Logic Capacity — 146,124 logic elements for implementing complex digital functions and large-scale customizable logic.
• Embedded Memory — Approximately 5.12 Mbits of total on-chip RAM to support data buffering, FIFOs, and mid-sized memory structures without external RAM.
• I/O Flexibility — 248 user I/O pins to interface with peripherals, sensors, and high-channel-count systems.

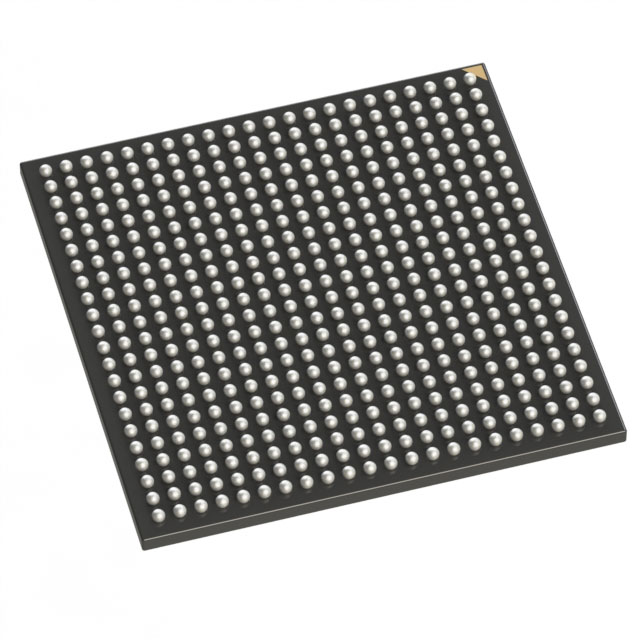

• Package — 484-BFBGA (supplier device package 484-FBGA, 19×19) in a surface-mount form factor suitable for compact board layouts.
• Power Supply Range — Operates from 1.14 V to 2.625 V, enabling use in a variety of power domains and supply schemes.
• Commercial Grade — Rated for 0 °C to 85 °C operating temperature for commercial-environment deployments.
• Compliance — RoHS-compliant for regulatory and assembly considerations.

Typical Applications

• Commercial Embedded Systems — Provides programmable logic and on-chip memory for control, data processing, and custom interfaces in commercial products.
• Communications Equipment — High logic density and 248 I/O enable protocol handling, data translation, and medium-scale packet processing tasks.
• Prototyping and Development — Large logic capacity and embedded RAM support rapid prototyping of digital designs and system integration efforts.
• Consumer Electronics — Compact BFBGA package and surface-mount mounting suit space-constrained consumer devices that require configurable logic and multiple I/O.

Unique Advantages

• High Logic Density: 146,124 logic elements allow complex designs to be implemented without partitioning across multiple devices, reducing board complexity.
• Significant On-Chip Memory: Approximately 5.12 Mbits of embedded RAM minimizes external memory dependencies and lowers overall BOM cost.
• Generous I/O Count: 248 user I/O pins provide broad connectivity options for sensors, peripherals, and multi-channel interfaces.
• Compact, Surface-Mount Package: 484-BFBGA (19×19) enables space-efficient PCB layouts suitable for compact commercial products.
• Flexible Power Range: Support for 1.14 V to 2.625 V supply voltages facilitates integration into diverse power architectures.
• Commercial Temperature Rating: Rated 0 °C to 85 °C for deployment in typical commercial environments.

Why Choose M2GL150TS-FCV484?

The M2GL150TS-FCV484 positions itself as a high-capacity IGLOO2 FPGA option for commercial designs that demand a large number of logic elements, substantial embedded memory, and extensive I/O in a compact surface-mount BFBGA package. Its power supply versatility and RoHS compliance support integration into modern electronic assemblies.

This device is well suited to teams building commercial embedded systems, communication equipment, and consumer products that need on-chip resources to reduce external components and simplify system design, while leveraging Microchip Technology’s FPGA offering.

Request a quote or submit a sales inquiry to receive pricing, availability, and assistance integrating the M2GL150TS-FCV484 into your next design.
