M2GL150TS-FCV484I

The M2GL150TS-FCV484I is an IGLOO2 field programmable gate array (FPGA) designed for industrial applications requiring a high density, reconfigurable logic solution. It combines a large number of logic elements with significant embedded memory and a broad I/O complement to support complex, application-specific digital designs.

With an operating temperature range rated for -40°C to 100°C and a wide supply voltage window, this surface-mount FPGA is positioned for robust operation in temperature-challenging and voltage-flexible industrial environments.

Key Features

• Logic Capacity  Provides 146,124 logic elements to implement complex custom logic, state machines, and data-path functions.
• Embedded Memory  Approximately 5.12 Mbits of embedded memory (5,120,000 bits) for on-chip buffering, lookup tables, and data storage.
• I/O Resources  248 general-purpose I/O pins to support wide peripheral and interface connectivity directly from the FPGA.
• Power Supply Flexibility  Supports a supply voltage range from 1.14 V to 2.625 V, enabling compatibility with varied system power rails and design choices.

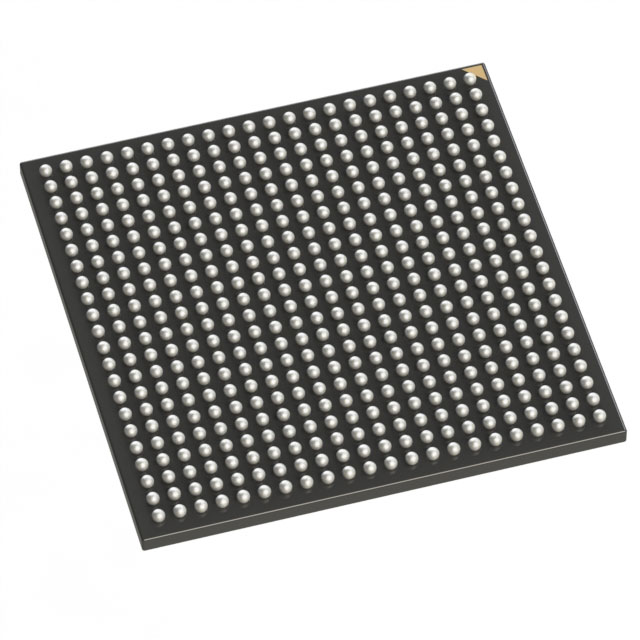

• Package and Mounting  Supplied in a 484-BFBGA package (supplier device package: 484-FBGA, 19×19) designed for surface-mount PCB assembly.
• Industrial Temperature Grade  Rated for operation from -40°C to 100°C to meet industrial environment requirements.
• Regulatory Compliance  RoHS compliant, supporting environmentally conscious manufacturing processes.

Typical Applications

• Industrial Control Systems  Deploy programmable logic for machine control, protocol bridging, and custom I/O handling where industrial temperature capability is required.
• Communications and Networking  Implement packet processing, interface adaptation, and custom timing logic using the device’s large logic and memory resources alongside its extensive I/O complement.
• Data Acquisition and Processing  Use on-chip memory and logic density to buffer and pre-process sensor or measurement data directly on the FPGA.

Unique Advantages

• High Logic Density: The 146,124 logic elements enable complex, large-scale designs without immediate need for multi-chip solutions.
• Substantial On‑Chip Memory: Approximately 5.12 Mbits of embedded memory reduces reliance on external RAM for many buffering and LUT requirements.
• Generous I/O Count: 248 I/O pins provide flexible connectivity for peripherals, interfaces, and high-pin-count designs.
• Wide Supply Voltage Range: Operation from 1.14 V to 2.625 V allows integration into designs with varying power-rail architectures.
• Industrial Temperature Rating: Specified -40°C to 100°C supports deployment in temperature-challenging industrial environments.
• Compact BFBGA Package: The 484-BFBGA (19×19) package delivers high integration density in a surface-mount form factor to save board area.

Why Choose M2GL150TS-FCV484I?

The M2GL150TS-FCV484I balances high logic capacity, substantial embedded memory, and a broad I/O set within an industrial-temperature-rated FPGA package. These characteristics make it well suited to engineers designing industrial control, communications, and data-processing systems that require reconfigurable logic combined with robust environmental tolerance.

For teams seeking a scalable, reprogrammable silicon building block, this IGLOO2 FPGA offers a blend of integration and flexibility that supports long-term design evolution while maintaining compliance with RoHS environmental requirements.

Request a quote or submit a procurement inquiry for the M2GL150TS-FCV484I to discuss pricing and availability for your next design.
