IS42S32800L-6TLI-TR
| Part Description |
256M, 3.3V, SDRAM, 8MX32, 166MHZ |
|---|---|
| Quantity | 1,931 Available (as of May 5, 2026) |
| Product Category | Memory |
|---|---|
| Manufacturer | Integrated Silicon Solution Inc |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 14 Weeks |
| Datasheet |
Specifications & Environmental
| Device Package | 86-TSOP II | Memory Format | DRAM | Technology | SDRAM | ||
|---|---|---|---|---|---|---|---|
| Memory Size | 256 Mbit | Access Time | 5.4 ns | Grade | Industrial | ||
| Clock Frequency | 166 MHz | Voltage | 3V ~ 3.6V | Memory Type | Volatile | ||
| Operating Temperature | -40°C ~ 85°C (TA) | Write Cycle Time Word Page | N/A | Packaging | 86-TFSOP (0.400", 10.16mm Width) | ||
| Mounting Method | Volatile | Memory Interface | LVTTL | Memory Organization | 8M x 32 | ||
| Moisture Sensitivity Level | N/A | RoHS Compliance | Unknown | REACH Compliance | REACH Unknown | ||
| Qualification | N/A | ECCN | N/A | HTS Code | N/A |
Overview of IS42S32800L-6TLI-TR – 256M, 3.3V, SDRAM, 8MX32, 166MHZ
The IS42S32800L-6TLI-TR from ISSI is a 256 Mbit volatile SDRAM device organized as 8M × 32. It operates from a 3.0 V to 3.6 V supply, supports a 166 MHz clock, and uses an LVTTL memory interface.
Key electrical and mechanical details include a specified access time of 5.4 ns, an operating ambient range of -40°C to 85°C, and an 86-TSOP II / 86-TFSOP package (0.400" / 10.16 mm width), providing a compact, industry-standard memory building block.
Key Features
- Memory Core 256 Mbit capacity implemented as 8M × 32; volatile DRAM technology (SDRAM).
- Performance Clock frequency rated at 166 MHz with an access time of 5.4 ns to define timing characteristics.
- Voltage and I/O Operates from 3.0 V to 3.6 V and uses an LVTTL memory interface.

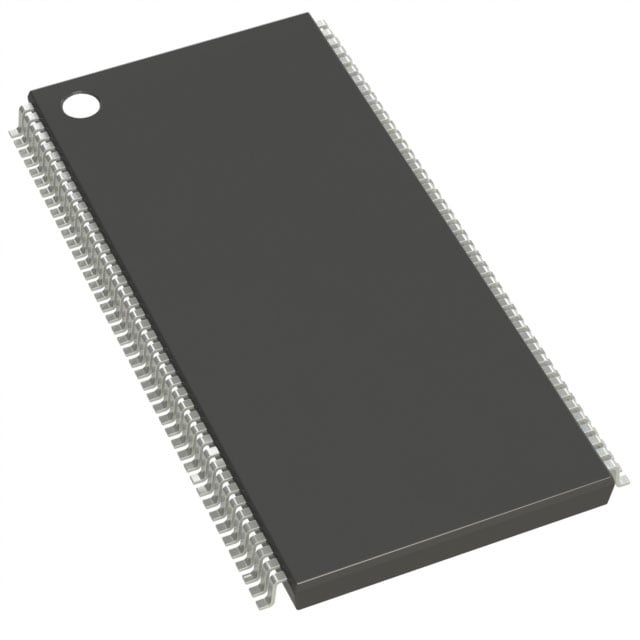

- Package Offered in an 86-TFSOP / 86-TSOP II package with a 0.400" (10.16 mm) body width.
- Environmental Range Specified operating temperature from -40°C to 85°C (TA).
Unique Advantages
- High-density memory in a standard organization: 256 Mbit capacity arranged as 8M × 32 provides a clear, consistent memory footprint for system design.
- Defined timing performance: 166 MHz clock operation with a 5.4 ns access time gives explicit timing parameters for memory subsystem planning.
- Standard 3.3 V class supply compatibility: 3.0–3.6 V supply range enables integration with typical 3.3 V systems.
- Wide ambient operating range: -40°C to 85°C rating supports broader temperature deployments.
- Industry-standard package: 86-TSOP II / 86-TFSOP package (10.16 mm width) provides a compact, standardized footprint for board-level integration.
Why Choose IS42S32800L-6TLI-TR?
The IS42S32800L-6TLI-TR delivers a clearly specified 256 Mbit SDRAM option with documented timing (5.4 ns), 166 MHz clock capability, LVTTL interface, and a 3.0–3.6 V operating range. Its -40°C to 85°C ambient rating and 86-TSOP II package provide straightforward mechanical and thermal parameters for design planning.
This device is appropriate for designs that require a standard SDRAM building block with defined capacity, timing, voltage, and packaging characteristics, enabling predictable integration into memory subsystems.
Request a quote or contact sales to obtain pricing, availability, and ordering information for the IS42S32800L-6TLI-TR.
