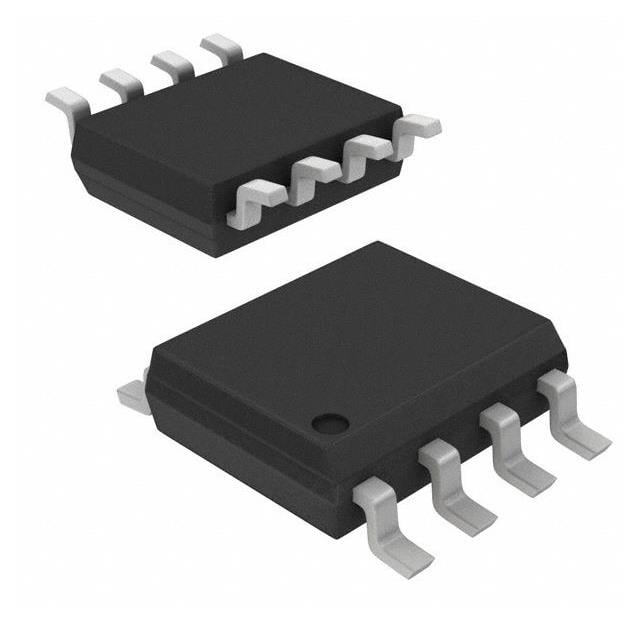

W74M12JVSSIQ TR
| Part Description |
IC FLASH 128MBIT SPI/QUAD 8SOIC |
|---|---|
| Quantity | 659 Available (as of May 5, 2026) |
| Product Category | Memory |
|---|---|
| Manufacturer | Winbond Electronics |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 24 Weeks |
| Datasheet |
Specifications & Environmental
| Device Package | 8-SOIC | Memory Format | FLASH | Technology | FLASH - NAND | ||
|---|---|---|---|---|---|---|---|
| Memory Size | 128 Mbit | Access Time | N/A | Grade | Industrial | ||
| Clock Frequency | 133 MHz | Voltage | 2.7V ~ 3.6V | Memory Type | Non-Volatile | ||
| Operating Temperature | -40°C ~ 85°C (TA) | Write Cycle Time Word Page | 3 ms | Packaging | 8-SOIC (0.209", 5.30mm Width) | ||
| Mounting Method | Non-Volatile | Memory Interface | SPI - Quad I/O, QPI | Memory Organization | 16M x 8 | ||
| Moisture Sensitivity Level | 1 (Unlimited) | RoHS Compliance | ROHS3 Compliant | REACH Compliance | REACH Unaffected | ||
| Qualification | N/A | ECCN | 3A991B1A | HTS Code | 8542.32.0071 |
Overview of W74M12JVSSIQ TR – IC FLASH 128MBIT SPI/QUAD 8SOIC
The W74M12JVSSIQ TR is a 128 Mbit non-volatile NAND flash memory in a compact 8-SOIC package. It implements SPI Quad I/O and QPI interfaces and is organized as 16M × 8 bits.
Designed for systems that require external flash storage, the device supports a 133 MHz clock rate, operates from a 2.7 V to 3.6 V supply, and is specified for an ambient temperature range of −40 °C to 85 °C.
Key Features
- Memory Core 128 Mbit NAND Flash organized as 16M × 8, providing non-volatile storage in a serial FLASH format.
- Interfaces SPI – Quad I/O and QPI support for high-throughput serial flash communication.
- Clock Supports operation up to 133 MHz to accommodate higher-speed serial transfers.
- Supply Voltage Operates from 2.7 V to 3.6 V to match common system power rails.
- Write Performance Page/word write cycle time specified at 3 ms.
- Package 8-SOIC package (0.209", 5.30 mm width) for straightforward through-hole-compatible surface mounting.
- Operating Temperature Specified for −40 °C to 85 °C ambient operation.
Typical Applications
- Embedded Systems Provides non-volatile storage via SPI/Quad I/O for code and data in embedded designs.
- Consumer Electronics Compact 8-SOIC footprint and 2.7 V–3.6 V operation suit integration into consumer products requiring external flash.
- Industrial Controls Temperature range to −40 °C to 85 °C supports deployment in industrial environments needing external FLASH memory.
Unique Advantages
- Serial Quad and QPI Support: Enables higher-throughput serial flash operations compared to standard SPI by utilizing Quad I/O and QPI modes.
- Compact Packaging: 8-SOIC package provides a small footprint for space-constrained boards while maintaining a standard supplier device package.
- Wide Voltage Range: 2.7 V–3.6 V supply compatibility eases integration with common system power rails.
- Extended Temperature Rating: −40 °C to 85 °C operating range supports deployment across a broad set of ambient conditions.
- Deterministic Write Time: 3 ms write cycle time for page/word operations allows predictable programming behavior.
Why Choose W74M12JVSSIQ TR?
The W74M12JVSSIQ TR delivers 128 Mbit of NAND flash storage in a standardized 8-SOIC package with SPI Quad I/O and QPI interface options. Its supported 133 MHz clock rate, 2.7 V–3.6 V supply range, and −40 °C to 85 °C operating temperature make it suitable for designs that require a compact, externally accessible non-volatile memory solution.
This device is appropriate for engineers and procurement teams specifying external flash for embedded, consumer, or industrial applications where interface flexibility, predictable write timing, and a common package form factor are required.
Request a quote or submit an inquiry for the W74M12JVSSIQ TR to receive pricing and availability information tailored to your project needs.
