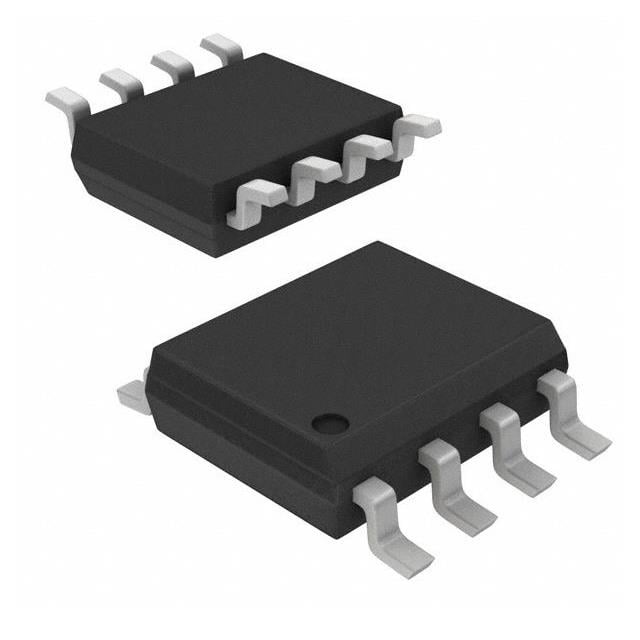

W74M12JVSSIQ
| Part Description |
IC FLASH 128MBIT SPI/QUAD 8SOIC |
|---|---|
| Quantity | 425 Available (as of May 5, 2026) |
| Product Category | Memory |
|---|---|
| Manufacturer | Winbond Electronics |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 24 Weeks |
| Datasheet |
Specifications & Environmental
| Device Package | 8-SOIC | Memory Format | FLASH | Technology | FLASH - NAND | ||
|---|---|---|---|---|---|---|---|
| Memory Size | 128 Mbit | Access Time | N/A | Grade | Industrial | ||
| Clock Frequency | 133 MHz | Voltage | 2.7V ~ 3.6V | Memory Type | Non-Volatile | ||
| Operating Temperature | -40°C ~ 85°C (TA) | Write Cycle Time Word Page | 3 ms | Packaging | 8-SOIC (0.209", 5.30mm Width) | ||
| Mounting Method | Non-Volatile | Memory Interface | SPI - Quad I/O, QPI | Memory Organization | 16M x 8 | ||
| Moisture Sensitivity Level | 1 (Unlimited) | RoHS Compliance | ROHS3 Compliant | REACH Compliance | REACH Unaffected | ||
| Qualification | N/A | ECCN | 3A991B1A | HTS Code | 8542.32.0071 |
Overview of W74M12JVSSIQ – IC FLASH 128MBIT SPI/QUAD 8SOIC
The W74M12JVSSIQ is a 128 Mbit non-volatile FLASH (NAND) memory device organized as 16M × 8 and supplied in an 8-SOIC package. It provides serial memory storage with SPI – Quad I/O and QPI interfaces for serial data access.
Designed to operate from 2.7 V to 3.6 V and across a temperature range of -40°C to 85°C (TA), the device supports a clock frequency of up to 133 MHz and a write cycle time of 3 ms, making it suitable for systems that require mid-density serial flash storage in a compact package.
Key Features
- Memory Type & Density 128 Mbit FLASH - NAND organized as 16M × 8, providing mid-range non-volatile storage capacity.
- Interfaces SPI with Quad I/O and QPI support for serial access modes.
- Performance Rated clock frequency up to 133 MHz with a write cycle time of 3 ms.
- Power Operating voltage range from 2.7 V to 3.6 V.
- Operating Conditions Specified operating temperature range: -40°C to 85°C (TA).
- Package 8-SOIC package (0.209", 5.30 mm width) in a standard 8-pin SOIC footprint.
Unique Advantages
- 128 Mbit capacity: Provides a mid-range non-volatile storage option in a single-chip solution.
- Quad I/O and QPI support: Enables multi-bit serial data transfer modes at the device's rated clock frequency of 133 MHz.
- Wide supply voltage: 2.7 V to 3.6 V operation supports common 3 V system rails.
- Extended temperature range: -40°C to 85°C (TA) for use in temperature-varied environments.
- Standard 8-SOIC package: Delivered in a widely used 8-pin SOIC footprint (0.209", 5.30 mm width) for straightforward PCB integration.
Why Choose IC FLASH 128MBIT SPI/QUAD 8SOIC?
The W74M12JVSSIQ combines 128 Mbit NAND flash density with SPI — including Quad I/O and QPI — in a compact 8-SOIC package, offering a balanced option for designs that require reliable, mid-density serial storage. Its 133 MHz clock rating, 3 ms write cycle time, and 2.7 V–3.6 V supply range provide predictable electrical and timing characteristics for system integration.
With an operating temperature range of -40°C to 85°C and a standard package footprint, this device is suitable for projects that need stable non-volatile memory in a commonly used form factor.
Request a quote or contact sales to discuss availability and pricing for the W74M12JVSSIQ.
