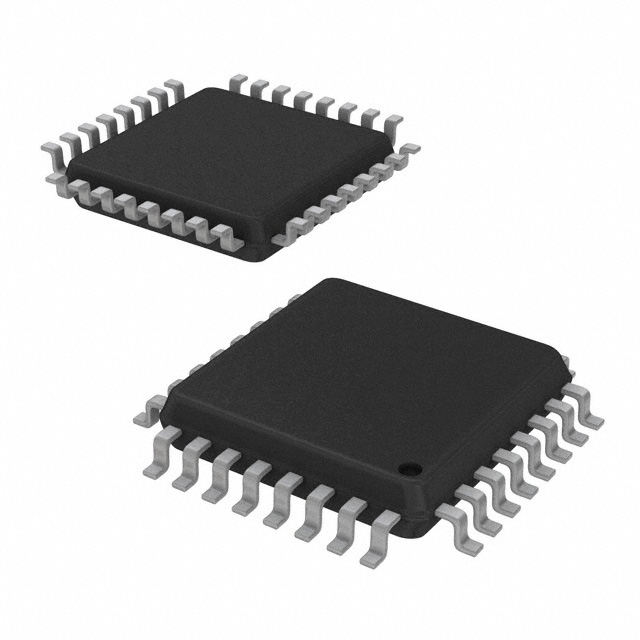

S9S12VR64F2CLC
IC MCU 16BIT 64KB FLASH 32LQFP
| Part Description |
12V1 S12 MagniV Microcontroller IC 16-Bit 25MHz 64KB (64K x 8) FLASH 32-LQFP (7x7) |
|---|---|
| Quantity | 1,688 Available (as of May 5, 2026) |
| Product Category | Microcontrollers |
|---|---|
| Manufacturer | NXP USA Inc. |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
Specifications
| Part Package | 32-LQFP |
|---|---|
| Device Package | 32-LQFP (7×7) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor: | 12V1 |
| Core Size: | 16-Bit |
| Speed: | 25MHz |
| Connectivity: | IrDA, LINbus, SCI, SPI |
| Peripherals: | LVD, POR, PWM, WDT |
| Number of I/O: | 16 |
| Program Memory Size: | 64KB (64K x 8) |
| Program Memory Type: | FLASH |
| EEPROM Size: | 512 x 8 |
| RAM Size: | 2K x 8 |
| Voltage – Supply (Vcc/Vdd): | 3.13V ~ 5.5V |
| Data Converters: | A/D 2x10b |
| Oscillator Type: | Internal |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | 3A991A2 |
| HTS Code | 8542.31.0001 |
