AM3892BCYG120

The AM3892BCYG120 is a Sitara AM38xx series microprocessor IC from Texas Instruments featuring a single ARM® Cortex®-A8 32-bit core running at 1.2 GHz. Designed for embedded applications, it combines processing performance with integrated interfaces for networking, storage, multimedia and display handling.

Its on-chip multimedia acceleration, DDR2/DDR3 memory controllers and multiple high-speed I/O options make it suitable for embedded designs that require processing headroom together with robust connectivity and peripheral support.

Key Features

• Core  The device is built around a single ARM® Cortex®-A8 32-bit core operating at 1.2 GHz.
• Multimedia & DSP  Includes multimedia co-processing and NEON™ SIMD support plus graphics acceleration and HDVPSS display interface controllers for video and image processing tasks.
• Memory  Integrated controllers for DDR2 and DDR3 memory technologies to support system memory requirements.
• Display  HDMI and HDVPSS display interface controllers for external display connectivity and video subsystem support.
• Ethernet & Networking  Two 10/100/1000 Mbps Ethernet interfaces enable dual Gigabit networking capability.
• Storage & USB  One SATA 3 Gbps interface and two USB 2.0 ports with PHY provide local storage and peripheral connectivity.
• Peripheral Interfaces  Standard additional interfaces include I2C for common sensor and control connections.

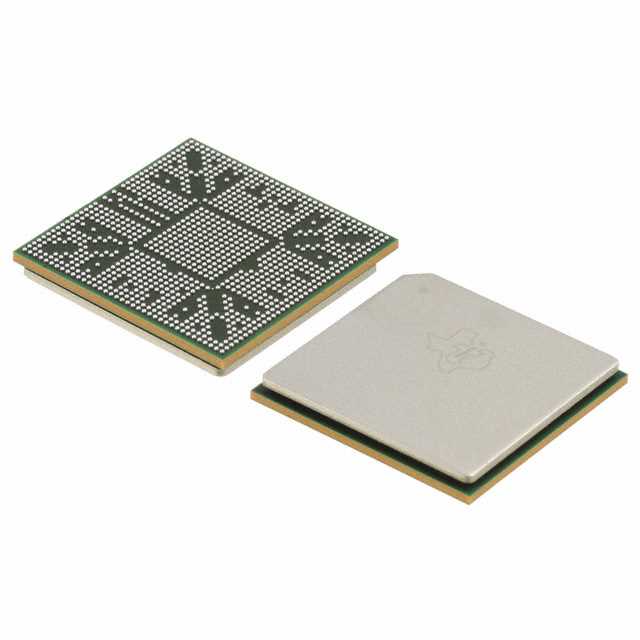

• Package & Mounting  Supplied in a 1031-FCBGA (25×25) package for surface-mount assembly.
• Operating Range  Commercial grade operation from 0 °C to 95 °C.
• Compliance  RoHS compliant.

Typical Applications

• Embedded Networking Appliances  Dual Gigabit Ethernet and SATA support allow the processor to serve networked gateways and small NAS or edge-storage devices.
• Multimedia and Display Systems  HDMI, HDVPSS and graphics acceleration make it well suited for video processing, digital signage, and display controller applications.
• Industrial and Commercial Control  DDR2/DDR3 memory support, I2C connectivity and a wide operating temperature range enable control systems and human-machine interfaces in commercial environments.
• Peripheral-Rich Embedded Designs  Multiple USB ports, SATA and standard peripheral interfaces simplify integration of cameras, storage and I/O subsystems.

Unique Advantages

• High single-thread performance: 1.2 GHz ARM® Cortex®-A8 core provides responsive processing for compute and control tasks.
• Integrated multimedia acceleration: NEON™ SIMD and graphics acceleration with HDVPSS reduce system-level codec and image-processing burdens on software.
• Comprehensive connectivity: Built-in Gigabit Ethernet (2x), SATA and USB 2.0 with PHY consolidate networking, storage and peripheral interfaces on-chip.
• Flexible memory support: DDR2 and DDR3 controllers allow designers to choose memory technologies that meet cost and performance targets.
• Compact FCBGA package: 1031-FCBGA (25×25) surface-mount packaging supports high-density board designs.
• Commercial temperature range: Rated for 0 °C to 95 °C to meet a wide set of commercial embedded deployment environments.

Why Choose AM3892BCYG120?

The AM3892BCYG120 positions itself as a capable, highly integrated Sitara-class MPU for embedded designs that require a balance of processing throughput, multimedia capability and extensive I/O. Its combination of a 1.2 GHz Cortex-A8 core, multimedia/DSP support, dual Gigabit Ethernet and storage interfaces reduces system complexity and external component count.

This part is well suited for developers and product teams building commercial embedded systems—where integration, networking and multimedia delivery are prioritized—backed by Texas Instruments' Sitara AM38xx series pedigree and ecosystem resources.

Request a quote or submit a sales inquiry to obtain pricing, availability and lead-time information for AM3892BCYG120.
