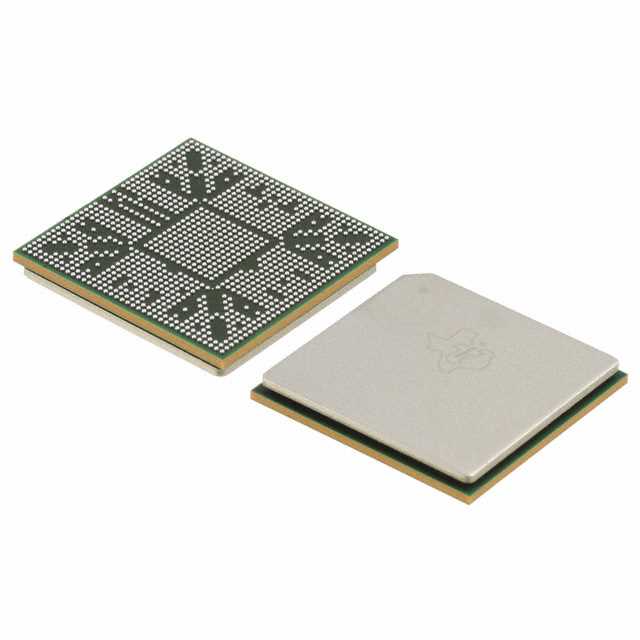

AM3892CCYG135

The AM3892CCYG135 is a Sitara™ microprocessor featuring a single ARM® Cortex®-A8 core running at 1.35 GHz in a 1031‑FCBGA (25×25) package. Designed for embedded applications, the device integrates multimedia acceleration, a range of high-speed interfaces and memory controllers to support graphics, networking and storage-focused designs.

This single-chip MPU targets embedded systems requiring a balance of processing performance and peripheral integration, with support for DDR2/DDR3 memory, HDMI/HDVPSS display interfaces, multiple Ethernet ports and SATA connectivity.

Key Features

• Core  ARM® Cortex®-A8 single 32‑bit core running at 1.35 GHz for application processing and control.
• Multimedia & DSP  Integrated multimedia capabilities with NEON™ SIMD support and graphics acceleration to handle video and compute workloads.
• Memory  On-chip support for DDR2 and DDR3 memory controllers to interface with common external DRAM configurations.
• Display  Display interface controllers including HDMI and HDVPSS for driving high-definition display and video pipelines.
• Ethernet & Networking  Dual 10/100/1000 Mbps Ethernet ports for gigabit network connectivity and robust networked applications.
• Storage & USB  Integrated SATA 3 Gbps interface and two USB 2.0 + PHY ports for mass storage and peripheral connectivity.
• Peripheral Interfaces  Common embedded interfaces such as I2C are provided for sensor, control and system management functions.
• Package & Mounting  1031‑FCBGA (25×25) surface-mount package (1031-BFBGA / FCBGA) suitable for compact board designs.
• Operating Range  Commercial grade operating temperature from 0 °C to 95 °C.
• Regulatory  RoHS compliant.

Typical Applications

• Embedded Multimedia Platforms  Use the integrated NEON™ SIMD and graphics acceleration with HDMI/HDVPSS to drive rich user interfaces and video playback.
• Networked Gateways and Routers  Dual gigabit Ethernet enables deployment in network appliances and connectivity hubs requiring robust LAN interfaces.
• Storage-Connected Systems  SATA 3 Gbps plus USB 2.0 support facilitate design of network-attached storage or systems that require local mass storage.
• General Embedded Control  DDR2/DDR3 memory support and I2C/peripheral interfaces make the device suitable for diverse embedded control and monitoring applications.

Unique Advantages

• Integrated multimedia and graphics  On-chip NEON™ SIMD and graphics acceleration reduce the need for external media processors in video and UI applications.
• Comprehensive connectivity  Dual gigabit Ethernet, SATA and multiple USB ports provide a broad set of I/O options for networking and storage designs.
• Flexible memory support  DDR2 and DDR3 controller support allows designers to select memory technology that matches performance and cost targets.
• Compact package  1031‑FCBGA packaging enables dense PCB layouts for space-constrained embedded products.
• Ready for commercial deployments  Commercial temperature rating (0 °C to 95 °C) and RoHS compliance align with standard industry requirements.

Why Choose AM3892CCYG135?

The AM3892CCYG135 positions itself as a capable single-core Sitara MPU for embedded systems that require a blend of application processing, multimedia capability and broad connectivity. Its combination of a 1.35 GHz ARM® Cortex®-A8 core, NEON™ multimedia DSP, display controllers and high-speed interfaces makes it suitable for designs that integrate video, networking and storage functions.

Engineers and procurement teams can leverage the device’s integrated controllers and compact 1031‑FCBGA package to simplify board design, reduce external component count and accelerate time-to-market for embedded products operating within commercial temperature ranges.

Request a quote or submit an inquiry to our sales team to get pricing, availability and additional technical details for the AM3892CCYG135.
