AM5706BCBDDEA

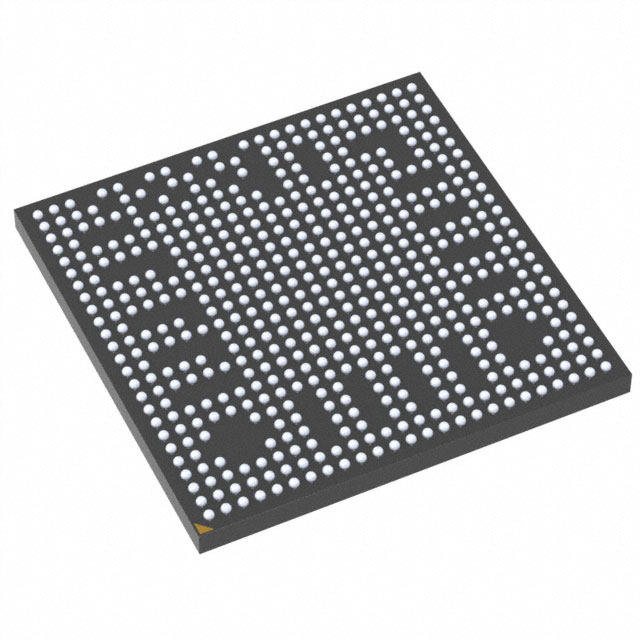

The AM5706BCBDDEA is a Sitara™ microprocessor IC featuring a single ARM® Cortex®‑A15 core running at 533 MHz in a 32‑bit implementation. It targets embedded applications that require a balanced mix of general‑purpose processing, real‑time co‑processing and rich peripheral integration.

Built with multiple high‑speed interfaces and on‑chip acceleration, this commercial‑grade device supports DDR3/DDR3L memory, dual gigabit Ethernet, SATA and USB, making it suitable for connected embedded systems with display and storage needs. The device is AEC‑Q100 qualified and offered in a 538‑FCBGA (17×17) package for surface‑mount assembly.

Key Features

• Core — Single ARM® Cortex®‑A15 32‑bit core clocked at 533 MHz for application processing.
• Co‑processors — On‑chip co‑processor support including ARM® Cortex®‑M4 and C66x DSP for real‑time and signal processing tasks.
• Memory — Integrated DDR3 / DDR3L memory controllers to support external system memory configurations.
• Display and Graphics — HDMI and video display interface controllers plus graphics acceleration to support user interfaces and media playback.
• Networking — Dual 10/100/1000 Mbps Ethernet ports for high‑throughput wired connectivity.
• Storage and USB — SATA 3 Gbps for storage plus two USB 3.0 and two USB 2.0 ports for peripheral and host connectivity.
• Vehicle and Field Interfaces — CAN interface available for control and sensor networks.
• Package and Mounting — 538‑ball FCBGA (17×17) / 538‑LFBGA package options; surface mount device.
• Operating Conditions & Grade — Commercial grade with operating temperature range of 0°C to 90°C; AEC‑Q100 qualified.
• Environmental — RoHS compliant.

Typical Applications

• Industrial Automation — Use the Cortex‑A15 core plus real‑time co‑processors and CAN/Ethernet interfaces for machine control and factory communications.
• Human‑Machine Interfaces (HMI) — HDMI/video outputs and graphics acceleration enable responsive operator panels and touchscreen displays.
• Networked Embedded Gateways — Dual gigabit Ethernet and USB 3.0 ports support data aggregation, protocol bridging and high‑speed peripherals.
• Edge Storage and Media Devices — SATA 3 Gbps and USB combine for local storage, media playback and file serving in embedded systems.

Unique Advantages

• Integrated connectivity mix: Dual gigabit Ethernet, USB 3.0/2.0, SATA and CAN reduce external bridge components and simplify PCB design.
• On‑chip heterogeneous processing: Cortex‑A15 plus Cortex‑M4 and C66x co‑processors enable partitioned workloads for real‑time control and DSP tasks without adding separate MCUs or DSP chips.
• Display and multimedia support: HDMI/video controllers with graphics acceleration provide a ready platform for rich user interfaces and media applications.
• Commercial grade with AEC‑Q100 qualification: Offers enhanced qualification for designs that require higher reliability standards while maintaining commercial grading and temperature range.
• Standard BGA assembly: 538‑ball FCBGA / LFBGA package supports compact, manufacturable surface‑mount designs.
• RoHS compliant: Meets common environmental requirements for modern electronics production.

Why Choose AM5706BCBDDEA?

The AM5706BCBDDEA combines a 533 MHz ARM® Cortex®‑A15 application core with dedicated co‑processors and a broad set of high‑speed peripherals to deliver a balanced platform for connected embedded systems. Its integrated memory controllers, dual gigabit Ethernet, SATA, USB 3.0 and display interfaces make it well suited to designs that need processing, networking, storage and rich UI capabilities in a single device.

This device is appropriate for engineers designing compact, connected embedded products that value integration and qualified reliability. With commercial grading, AEC‑Q100 qualification, and a compact 538‑ball BGA package, the AM5706BCBDDEA supports manufacturable designs requiring robust connectivity and multimedia features.

Request a quote or submit an inquiry to obtain pricing, lead times and availability for the AM5706BCBDDEA. Our team can provide the information you need to move your design forward.
