AM5706BCBDDA

The AM5706BCBDDA is a Sitara AM57xx series microprocessor featuring an ARM® Cortex®-A15 core running at 533 MHz. Designed for embedded applications, it combines a 32-bit Cortex-A15 application core with on-chip co-processors and multiple high-speed peripheral interfaces.

This device targets embedded designs that require integrated connectivity, display and storage interfaces, and hardware acceleration while maintaining commercial-grade qualification and AEC-Q100 qualification where specified.

Key Features

• Core  Single ARM® Cortex®-A15 32-bit application core operating at 533 MHz for general-purpose processing.
• Co-processors & DSP  Includes ARM® Cortex®-M4 and C66x co-processors for offloading auxiliary processing and signal-processing tasks.
• Memory Controllers  Integrated DDR3/DDR3L memory controllers to support system memory interfacing.
• Display & Graphics  Display interface controllers include HDMI and video support and the device provides graphics acceleration.
• Ethernet  Dual 10/100/1000 Mbps Ethernet ports for high-speed network connectivity.
• USB  Multiple USB ports: two USB 2.0 and two USB 3.0 interfaces for peripheral and host connectivity.
• Storage  SATA 3 Gbps interface for direct-attached storage integration.
• Automotive & CAN  Includes CAN as an additional interface; device listing shows AEC-Q100 qualification where applicable.

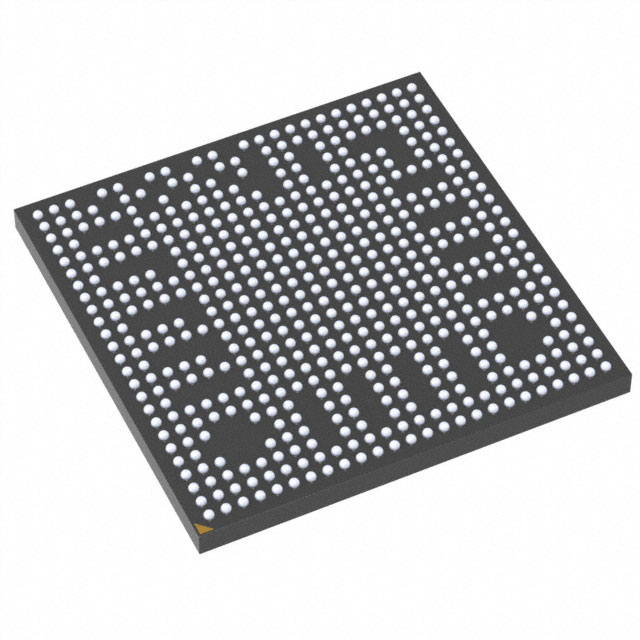

• Package & Mounting  538-ball FCBGA package (17 × 17 mm), surface-mount mounting for compact embedded board designs.
• Operating Range & Grade  Commercial grade with an operating temperature range of 0 °C to 90 °C; RoHS compliant.

Typical Applications

• Embedded Systems  General embedded compute platforms leveraging the Cortex-A15 core and DDR3 memory interface for application processing.
• Multimedia & Display  Systems requiring HDMI/video output and graphics acceleration for user interfaces and video playback.
• Networking & Communications  Networked devices that use the dual Gigabit Ethernet ports for data and control traffic.
• Storage Gateways  Appliances and gateways that require SATA connectivity for attached storage.
• Control & Sensor Subsystems  Designs that can utilize the ARM® Cortex®-M4 and C66x co-processors alongside the main core for control, signal processing, or sensor interfacing; CAN supports vehicle or industrial field networks where applicable.

Unique Advantages

• Integrated multi-domain processing: Combines an ARM® Cortex®-A15 core with Cortex®-M4 and C66x co-processors to partition application, control, and DSP workloads on a single device, simplifying system architecture.
• Rich I/O and connectivity: Dual Gigabit Ethernet, USB 2.0/3.0, SATA and CAN provide a broad set of interfaces to reduce external bridge components.
• Display and graphics support: On-chip display controllers (HDMI, video) and graphics acceleration enable compact multimedia-capable designs.
• Compact packaging: 538-FCBGA (17×17 mm) surface-mount package supports high-density board layouts for space-constrained embedded products.
• Qualification and compliance: Commercial grade device listing with AEC-Q100 qualification noted and RoHS compliance for regulatory considerations.

Why Choose AM5706BCBDDA?

The AM5706BCBDDA positions itself as a highly integrated microprocessor for embedded designs that need a balance of application processing, co-processor acceleration, and extensive peripheral connectivity. With a 533 MHz Cortex-A15 core, dedicated Cortex-M4 and C66x co-processors, and support for DDR3/DDR3L, the device enables compact systems that consolidate application, control and signal-processing functions.

Its combination of display interfaces, dual Gigabit Ethernet, USB 2.0/3.0, SATA and CAN, plus a 538-ball FCBGA package and defined operating temperature range, makes it appropriate for designs where integration, interface density and board-space efficiency are priorities. The Sitara AM57xx series positioning and qualification details support longer-term product planning within embedded product lines.

Request a quote or submit an RFQ to receive pricing and availability for AM5706BCBDDA and to discuss how this Sitara MPU can fit your embedded design requirements.
