AM4378BZDND80

The AM4378BZDND80 is an ARM® Cortex®-A9 based Sitara™ microprocessor delivering a single 32‑bit core at 800 MHz for embedded applications. Designed for industrial environments, it combines processor performance with integrated peripheral controllers and hardware acceleration to address a range of embedded system designs.

Targeted at embedded and industrial markets, the device integrates connectivity, display and multimedia features alongside security acceleration and flexible memory support to simplify system design and integration.

Key Features

• Core  ARM® Cortex®-A9 single 32‑bit core running at 800 MHz.
• Multimedia and SIMD  Includes multimedia co-processors and NEON™ SIMD acceleration for media and signal processing tasks.
• Memory Controllers  Supports LPDDR2, DDR3 and DDR3L memory interfaces for flexible system memory design.
• Display and Graphics  Display interface controllers including TSC and WXGA support, with graphics acceleration capability.
• Ethernet  Dual 10/100/1000 Mbps Ethernet interfaces for high-speed wired networking.
• USB  Two USB 2.0 ports with integrated PHYs for host/device connectivity.
• Vehicle and Industrial Bus  CAN interface available for industrial control and bus communications.
• Security  Integrated crypto accelerator to offload cryptographic operations.

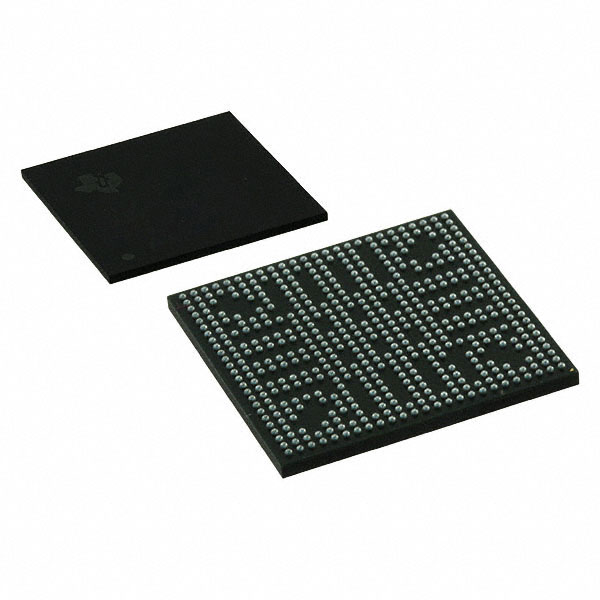

• Package and Mounting  Supplier device package: 491‑NFBGA (17×17); package case listed as 491‑LFBGA. Surface mount device.
• Operating Range  Industrial-grade operating temperature range from −40 °C to 90 °C.
• Compliance  RoHS compliant.

Typical Applications

• Industrial Control: Use the AM4378BZDND80 for embedded controllers and PLC interfaces where industrial temperature operation and CAN/Ethernet connectivity are required.
• Networking and Communications: Dual Gigabit Ethernet and USB 2.0 with PHY support make it suitable for gateway, router, and edge networking devices.
• Human-Machine Interfaces (HMIs): Graphics acceleration and WXGA display support enable responsive touch and display applications for operator panels and kiosks.
• Multimedia and Vision: NEON SIMD and multimedia co-processors support multimedia processing and basic vision tasks in embedded systems.

Unique Advantages

• Single-core deterministic performance: A dedicated 800 MHz ARM® Cortex®-A9 core provides predictable single-threaded processing for control and interface tasks.
• Integrated connectivity: Dual Gigabit Ethernet, dual USB 2.0 with PHY and CAN reduce external component count for connected embedded designs.
• Flexible memory support: LPDDR2, DDR3 and DDR3L controllers allow designers to choose memory types that match cost and performance targets.
• On-chip security acceleration: Crypto accelerator offloads cryptographic workloads to support secure communications and data protection.
• Industrial temperature rating: Rated for operation from −40 °C to 90 °C to meet demanding environmental requirements.
• Compact BGA package: 491‑ball NFBGA (17×17) footprint supports high-density board designs.

Why Choose AM4378BZDND80?

The AM4378BZDND80, part of the Sitara AM437x series, combines an ARM® Cortex®-A9 core at 800 MHz with a broad set of integrated peripherals and hardware accelerators tailored for embedded and industrial designs. Its combination of memory flexibility, dual Gigabit Ethernet, USB, CAN and graphics acceleration enables compact, integrated systems without excessive external components.

This part is suited to designers of industrial controls, networking equipment, HMIs and multimedia-enabled embedded products who require industrial temperature capability, on-chip security acceleration and a compact BGA package for high-density designs.

Request a quote or submit an inquiry to obtain pricing and availability for the AM4378BZDND80.
