AM5706BCBDD

The AM5706BCBDD is a Sitara™ ARM® Cortex®-A15 microprocessor IC from Texas Instruments, featuring a single 32‑bit Cortex‑A15 core running at 533 MHz. It targets embedded applications that require a balance of application processing, real‑time control and DSP acceleration through integrated co‑processor options.

Designed for embedded systems, the device integrates display, high‑speed connectivity and storage interfaces to support human‑machine interfaces, networked controllers and media‑enabled embedded products while meeting commercial grade operating conditions.

Key Features

• Core and Acceleration Single ARM® Cortex®‑A15 32‑bit core at 533 MHz, with integrated co‑processor support including ARM® Cortex®‑M4 and C66x for real‑time and DSP tasks.
• Memory On‑chip controllers for DDR3 and DDR3L memory to support system memory requirements.
• Display and Graphics HDMI and video display controllers with graphics acceleration to drive visual user interfaces and video output.
• Ethernet and Networking Dual 10/100/1000 Mbps Ethernet interfaces for robust wired networking and industrial communications.
• USB and Peripheral Connectivity Multiple USB ports including USB 2.0 (2) and USB 3.0 (2) for high‑speed peripheral and host connectivity; additional CAN interface for in‑vehicle or industrial bus integration.
• Storage Integrated SATA 3 Gbps interface for local storage and media applications.

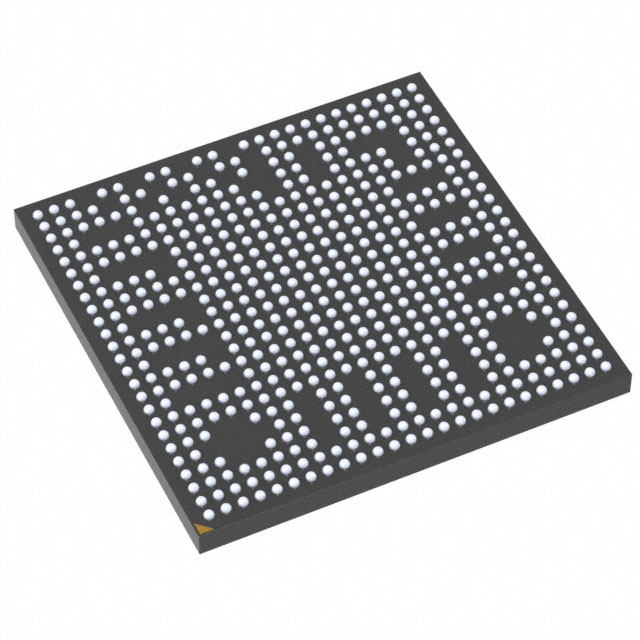

• Package and Mounting 538‑lead FCBGA package (538‑FCBGA, 17×17 mm); surface mount for compact board implementation.
• Qualification and Environmental Commercial grade device with AEC‑Q100 qualification and RoHS compliance; operating temperature range 0 °C to 90 °C.

Typical Applications

• Human‑Machine Interfaces (HMI) — Use HDMI/video and graphics acceleration to drive touch displays and operator panels for industrial and commercial equipment.
• Industrial Networking and Gateways — Dual Gigabit Ethernet plus CAN and USB connectivity enable networked controllers, protocol gateways and edge compute nodes.
• Embedded Storage and Media Systems — SATA and USB 3.0 interfaces support local storage, media streaming and file‑server functionality in embedded appliances.
• Real‑Time Control and Signal Processing — ARM Cortex‑M4 and C66x co‑processors provide on‑chip resources for motor control, sensor fusion and DSP workloads.

Unique Advantages

• Balanced compute and real‑time capability: Single Cortex‑A15 application core paired with Cortex‑M4 and C66x co‑processors provides a mix of application processing and real‑time/DSP acceleration without external components.
• Comprehensive connectivity: Dual Gigabit Ethernet, multiple USB ports, CAN and SATA reduce the need for additional bridge chips and simplify system design.
• Integrated multimedia support: HDMI/video controllers and graphics acceleration enable compact designs for visual interfaces and media playback.
• Compact, manufacturable package: 538‑lead FCBGA (17×17 mm) surface‑mount package supports high‑density board layouts for space‑constrained embedded systems.
• Industry qualification and compliance: AEC‑Q100 qualification and RoHS compliance support designs with defined reliability and environmental requirements within the specified commercial temperature range.

Why Choose AM5706BCBDD?

The AM5706BCBDD positions itself as an integrated embedded processing solution that combines a 533 MHz Cortex‑A15 application core with on‑chip real‑time and DSP co‑processors, broad I/O and multimedia interfaces, and support for DDR3/DDR3L memory. This combination makes it suitable for designers who need concurrent application processing, deterministic control and media/communication capabilities in a single device.

Backed by the Sitara AM57xx series pedigree from Texas Instruments, the AM5706BCBDD offers a scalable, well‑specified option for embedded and industrial designs that require robust connectivity, storage and display features while adhering to commercial grade and AEC‑Q100 qualification criteria.
