AM5706BCBDJ

The AM5706BCBDJ is a Sitara AM57xx series microprocessor IC from Texas Instruments featuring a single ARM® Cortex®-A15 32-bit core running at 667 MHz. It integrates a broad set of system interfaces and co-processing options to support embedded designs that require networking, multimedia and real-time offload capabilities.

Targeted at commercial embedded applications, this device delivers a combination of compute, graphics acceleration, and peripheral integration—helpful where compact, board-level integration and proven supplier support are required.

Key Features

• Core Processor  ARM® Cortex®-A15 single 32-bit core at 667 MHz for application processing and system control.
• Co-processors  Integrated co-processor options include ARM® Cortex®-M4 and C66x DSPs to offload real-time control and signal processing workloads.
• Memory Support  DDR3 and DDR3L memory controller support to enable flexible system memory configurations.
• Display and Graphics  HDMI and video display interface controllers plus graphics acceleration for multimedia and HMI applications.
• High‑speed Connectivity  Dual 10/100/1000 Mbps Ethernet ports and support for CAN for diversified networking and field-bus connectivity.
• Storage and USB  Single SATA 3 Gbps interface plus two USB 3.0 and two USB 2.0 ports for high-speed storage and peripheral connectivity.

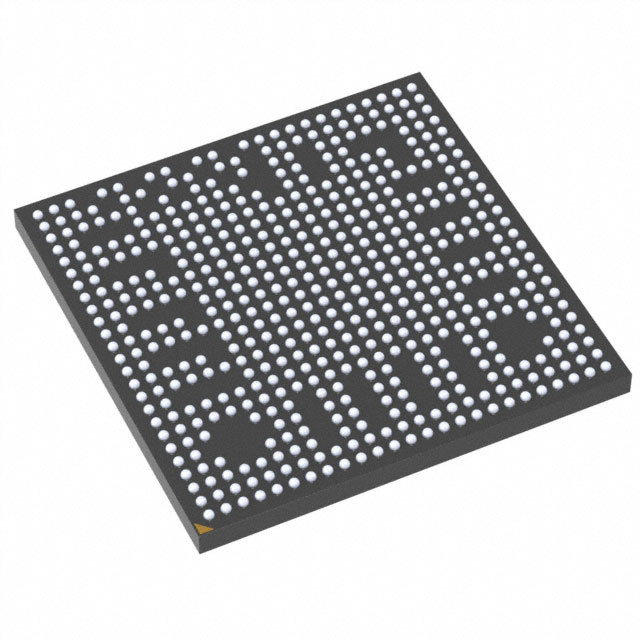

• Package and Mounting  538‑ball FCBGA package (538‑FCBGA, 17×17 mm) in a surface-mount form factor for compact board designs.
• Operating Range and Grade  Commercial grade device rated for 0°C to 90°C operation.
• Qualification and Compliance  AEC‑Q100 qualification is listed and the device is RoHS compliant.

Typical Applications

• Industrial Networking and Gateways  Dual Gigabit Ethernet and CAN support enable robust connectivity for protocol bridging and edge gateway designs.
• Multimedia HMIs and Displays  HDMI/video controllers and graphics acceleration support user interfaces, video playback and advanced display tasks.
• Embedded Storage and Peripherals  SATA and multiple USB 3.0/2.0 ports facilitate local storage, high-speed data transfer, and peripheral expansion.
• Real‑time Control and Signal Processing  On-chip Cortex‑M4 and C66x DSP co-processors provide hardware resources for motor control, sensor processing, or other deterministic workloads.

Unique Advantages

• Integrated multi‑domain processing: Combines a Cortex‑A15 application core with Cortex‑M4 and C66x co-processors to separate application, real-time and DSP tasks on a single silicon device.
• Broad I/O consolidation: Ethernet, CAN, SATA, USB 3.0/2.0 and display interfaces reduce external controllers and simplify BOM.
• Flexible memory options: DDR3/DDR3L controller support enables designers to choose memory configurations that match performance and power targets.
• Compact FCBGA package: 538‑ball 17×17 mm FCBGA provides a dense, surface‑mount solution suitable for space-constrained boards.
• Commercial temperature rating with qualification: Operates from 0°C to 90°C and lists AEC‑Q100 qualification, supporting reliability-focused design choices.
• RoHS compliant: Meets environmental compliance requirements for modern electronics manufacturing.

Why Choose AM5706BCBDJ?

The AM5706BCBDJ positions itself as a compact, integrated microprocessor option within the Sitara AM57xx family suitable for commercial embedded systems that require a balance of application processing, real-time control and multimedia capabilities. Its combination of a 667 MHz Cortex‑A15 core, dedicated co-processors, extensive peripheral set and a dense FCBGA package make it appropriate for designers seeking to consolidate functionality while maintaining board-level integration.

Backed by Texas Instruments' Sitara platform, this device offers a clear upgrade path within the AM57xx series and supports designs where flexible memory choices, multiple high-speed interfaces and a defined commercial operating range are priorities.

Request a quote or submit an RFQ to get pricing and availability for the AM5706BCBDJ and accelerate your design cycle with this Sitara AM57xx microprocessor.
