AM5706BCBDJA

The AM5706BCBDJA is a Sitara AM57xx series microprocessor from Texas Instruments featuring a single ARM® Cortex®-A15 32‑bit core running at 667 MHz in a 538‑FCBGA (17×17) package. Designed for embedded applications, it integrates a range of high‑speed I/O and co‑processing options to support connected and multimedia‑oriented designs.

With native support for high‑speed networking, display interfaces, storage and multiple USB ports, this device targets embedded systems that require a compact, integrated processing solution with commercial‑grade qualification and AEC‑Q100 device qualification.

Key Features

• Core  ARM® Cortex®‑A15 single 32‑bit core at 667 MHz for control and application processing.
• Co‑processors  Integrated co‑processor support including ARM® Cortex®‑M4 and C66x to offload real‑time and DSP workloads.
• Memory  DDR3 and DDR3L memory controller support for flexible system memory configurations.
• Display  Display interface controllers including HDMI and video pipelines for multimedia and user‑interface applications.
• Networking  Dual 10/100/1000 Mbps Ethernet ports for high‑throughput network connectivity.
• Storage & USB  SATA 3 Gbps (1) plus multiple USB ports (USB 2.0 ×2, USB 3.0 ×2) to support local storage and high‑speed peripheral connectivity.
• Vehicle/Field Interfaces  CAN interface for support of control and communications in integrated systems.
• Graphics Acceleration  On‑chip graphics acceleration to assist display and multimedia tasks.

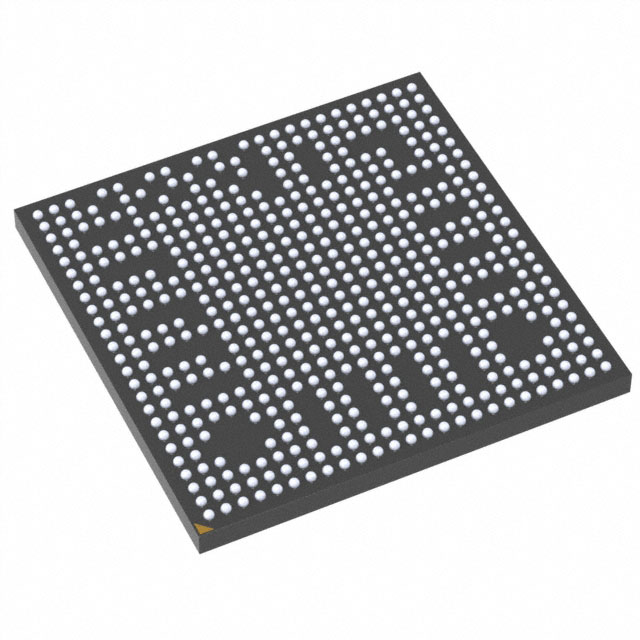

• Package & Mounting  538‑FCBGA (17×17) surface‑mount package for compact board-level integration.
• Operating Range & Qualification  Commercial grade operation from 0°C to 90°C; qualification listed as AEC‑Q100. RoHS compliant.

Typical Applications

• Embedded Networking Appliances  Dual gigabit Ethernet and high‑performance processing make the device suitable for networked embedded systems requiring reliable data throughput.
• Multimedia HMIs and Displays  HDMI/video interfaces and graphics acceleration support human‑machine interfaces and multimedia display applications.
• Edge Storage and Peripheral Systems  SATA 3 Gbps plus USB 3.0/2.0 connectivity enable onboard storage and high‑speed peripheral support for edge servers and storage nodes.
• Industrial Control and CAN‑enabled Systems  CAN interface and available co‑processors support control and real‑time signal processing in industrial embedded designs.

Unique Advantages

• Integrated I/O Ecosystem  Built‑in Ethernet, SATA, USB, HDMI and CAN reduce external bridge components and simplify BOM.
• Heterogeneous Processing  Cortex‑A15 alongside Cortex‑M4 and C66x co‑processors enables partitioning of application, real‑time and DSP workloads on a single device.
• Flexible Memory Support  DDR3 and DDR3L controller compatibility allows selection of memory types to match system power and performance needs.
• Compact Package  538‑FCBGA (17×17) surface‑mount package delivers high integration in a board‑space efficient footprint.
• Qualification and Compliance  AEC‑Q100 qualification and RoHS compliance provide documented device qualification and environmental compliance.

Why Choose AM5706BCBDJA?

The AM5706BCBDJA positions itself as a compact, highly integrated Sitara microprocessor option for embedded designs that require a 32‑bit ARM® Cortex®‑A15 processing core with extensive I/O and co‑processing capability. Its combination of networking, storage, display and peripheral interfaces along with DSP and microcontroller co‑processors make it suitable for systems that consolidate application, real‑time and media tasks.

Manufactured by Texas Instruments and released within the Sitara AM57xx series, this device offers a balance of performance and integration for commercial embedded projects requiring a qualified, RoHS‑compliant component in a space‑efficient package.

Request a quote or submit a procurement inquiry for AM5706BCBDJA to receive availability and pricing tailored to your project requirements.
