AM5708BCBDJEAR

The AM5708BCBDJEAR is a Sitara AM57xx series microprocessor from Texas Instruments featuring a single ARM® Cortex®-A15 32-bit core running at 667 MHz. It targets embedded applications that require integrated multimedia, high-speed connectivity and on-chip coprocessing.

On-chip resources include ARM® Cortex®-M4 and C66x coprocessors, DDR3/DDR3L memory controllers, HDMI/video display controllers with graphics acceleration, multiple USB ports, SATA and dual Gigabit Ethernet interfaces, making it suitable for compact, connected embedded designs.

Key Features

• Core Single ARM® Cortex®-A15 32‑bit core at 667 MHz for application-level processing.
• Co-processors & DSP Integrated ARM® Cortex®-M4 and C66x coprocessors for offloading control and signal-processing tasks.
• Memory interfaces DDR3 and DDR3L memory controller support for system memory integration.
• Display & Graphics HDMI and video display controllers with graphics acceleration for multimedia and HMI implementations.
• Wired connectivity Dual 10/100/1000 Mbps Ethernet ports, one SATA 3 Gbps interface, and CAN provide diverse system I/O options.
• USB Multiple USB ports including two USB 2.0 and two USB 3.0 for high-speed peripheral connectivity.

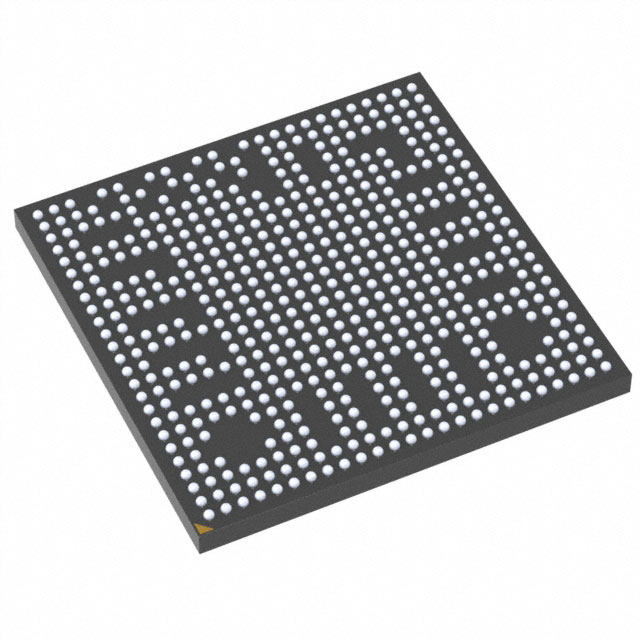

• Package & Mounting 538‑FCBGA (17×17) package, also listed as 538‑LFBGA FCBGA, designed for surface‑mount assembly.
• Qualification & Grade AEC‑Q100 qualification is specified; device is listed as Commercial grade.
• Operating range Specified operating temperature range of 0 °C to 90 °C.

Typical Applications

• Human‑Machine Interfaces (HMI) HDMI, video controllers and graphics acceleration support rich display and user interface implementations.
• Networked Embedded Systems Dual Gigabit Ethernet, USB 3.0 and SATA enable high‑bandwidth data transfer and storage for gateways or edge appliances.
• Multimedia and Video Processing On-chip video controllers and graphics acceleration cater to embedded video decode/encode and display tasks.
• Control and Signal Processing Integrated Cortex‑M4 and C66x coprocessors provide hardware resources for real‑time control and DSP workloads.

Unique Advantages

• Balanced processing architecture: A 667 MHz Cortex‑A15 application core combined with Cortex‑M4 and C66x coprocessors allows task partitioning between application, control and DSP functions.
• Comprehensive connectivity: Dual GigE, SATA, USB 2.0/3.0 and CAN provide broad interfacing options to reduce external bridge components.
• Integrated multimedia capability: HDMI/video controllers with graphics acceleration simplify HMI and video design integration.
• Compact surface‑mount package: The 538‑FCBGA (17×17) package supports space‑constrained board layouts while providing extensive I/O.
• Qualified for demanding designs: AEC‑Q100 qualification is listed alongside a commercial grade designation, supporting use in applications requiring recognized supplier qualifications.

Why Choose AM5708BCBDJEAR?

The AM5708BCBDJEAR positions itself as an integrated solution for embedded systems that require a 667 MHz Cortex‑A15 application processor combined with dedicated coprocessors, multimedia engines and extensive connectivity. Its feature set reduces the need for multiple discrete components when implementing HMIs, networked appliances, multimedia devices or control platforms.

With DDR3/DDR3L memory support, dual Gigabit Ethernet, SATA, multiple USB ports, CAN and a compact 538‑FCBGA surface‑mount package, this device is suited to designers seeking a consolidated, qualification‑listed microprocessor building block for robust embedded designs.

Request a quote or submit a procurement inquiry today to check availability and pricing for AM5708BCBDJEAR.
