AM5708BCBDJR

The AM5708BCBDJR is an ARM® Cortex®-A15 based Sitara™ microprocessor featuring a single 32-bit core running at 667 MHz in a 538-FCBGA (17×17) package. It integrates a broad set of interfaces and co-processor support targeted at embedded designs that require communication, multimedia and storage capabilities.

With on-chip support for DDR3/DDR3L memory controllers, multiple Ethernet ports, USB, SATA and display interfaces, this device is positioned for embedded, industrial and networking applications where integration and interface density are key.

Key Features

• Processor Core  ARM® Cortex®-A15 single 32-bit core at 667 MHz for general embedded processing tasks.
• Co-processor Support  Includes support for ARM® Cortex®-M4 and C66x co-processors to offload specialized control and signal-processing workloads.
• Memory  DDR3 and DDR3L memory controller support for system memory interfacing.
• Ethernet Connectivity  Two 10/100/1000 Mbps Ethernet interfaces for high-speed networked applications.
• Storage and USB  SATA 3 Gbps support plus USB connectivity: two USB 2.0 ports and two USB 3.0 ports for external storage and peripheral connectivity.
• Display and Graphics  HDMI and video display interface controllers with graphics acceleration for multimedia and HMI tasks.
• Additional Interfaces  CAN interface support for control and industrial communication networks.

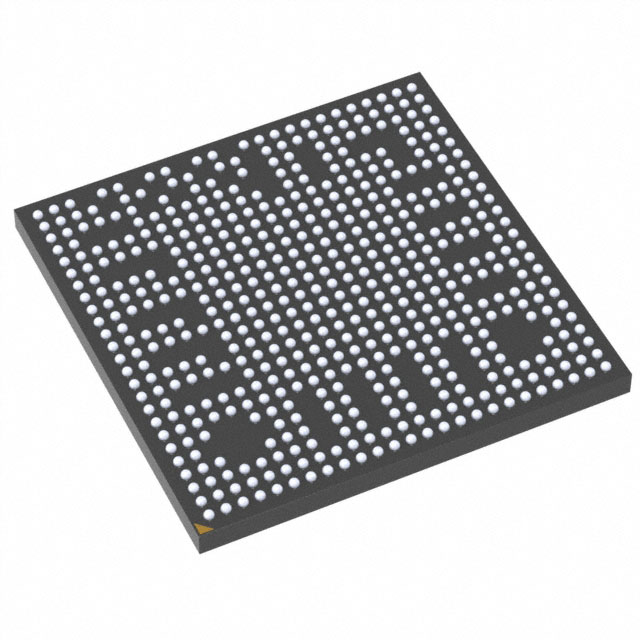

• Package and Mounting  538-FCBGA package (17×17 mm), surface mount.
• Operating Range  Commercial operating temperature: 0°C to 90°C.
• Qualification and Compliance  Product qualification: AEC-Q100. RoHS compliant.

Typical Applications

• Industrial Automation  Use the AM5708BCBDJR for machine control, PLCs and industrial gateways leveraging Ethernet, CAN and industrial-grade qualification.
• Networking and Communication Gateways  Dual gigabit Ethernet and USB 3.0 enable routing, bridging and edge gateway designs.
• Multimedia and HMI  HDMI/video interfaces and graphics acceleration support rich human-machine interfaces and multimedia displays.
• Storage and Logging  SATA 3 Gbps plus high-speed USB allow local storage, logging and data-transfer applications.

Unique Advantages

• Integrated Interface Set  Multiple Ethernet ports, USB 2.0/3.0, SATA, HDMI and CAN reduce the need for external bridge components and simplify BOM.
• Co-processor Flexibility  Support for ARM Cortex-M4 and C66x co-processors enables separation of control, real-time and signal-processing tasks.
• Memory Options  DDR3/DDR3L controller support provides flexibility in memory selection for performance and power trade-offs.
• Commercial and Qualified  Commercial grade with AEC-Q100 qualification and RoHS compliance for designs that require recognized device qualification.
• Compact BGA Package  538-FCBGA (17×17) surface-mount package supports high-density board designs.
• Multimedia-Ready  On-chip display controllers and graphics acceleration streamline HMI and video-enabled product designs.

Why Choose AM5708BCBDJR?

The AM5708BCBDJR combines a 667 MHz ARM Cortex-A15 core with a comprehensive set of connectivity, storage and display interfaces to serve a range of embedded applications. Its integrated features reduce external component count and simplify system integration for designs that demand interface density and multimedia capability.

This device is suitable for teams designing industrial, networking, multimedia and storage-aware embedded systems that need a balanced mix of processing, peripheral and interface functionality, backed by AEC-Q100 qualification and RoHS compliance for regulated designs.

Request a quote or submit an inquiry to receive pricing, availability and ordering information for the AM5708BCBDJR.
